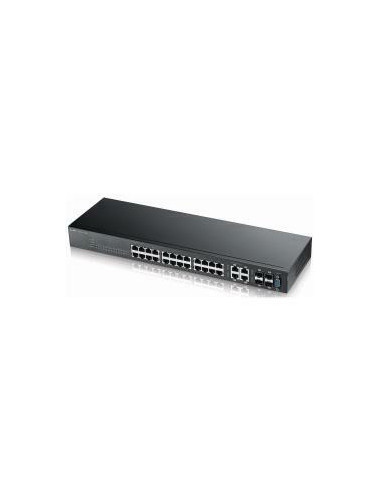

Switch - GS2210-24 Switch 24 puertos gigabit gestionable Ver separador Outros Conteúdos

Zyxel GS2210-24 24 port Gigabit L2 managed switch conmutador gestionable 10/100/1000 Gigabit

• 24 x GbE RJ-45 puertos

• 4 x GbE combo (RJ-45/SFP) puertos

Fully managed Layer 2 switching solution

GbE RJ-45, GbE combo (RJ-45/SFP) and fixed GbE SFP connectivity

L2 multicast, IGMP snooping, and MVR for convergence

Enhanced network protection with IP source guard, DHCP snooping, ARP inspection, CPU protection

L2, L3 and L4 filtering, MAC freeze, port isolation, guest VLAN for improved isolation and access control

Future-proofed with IPv6 support

Standard Compliance

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Ethernet

IEEE 802.3ab 1000BASE-T Ethernet

IEEE 802.3z 1000BASE-X

IEEE 802.3az EEE

IEEE 802.3x flow control

IEEE 802.3ad LACP aggregation

IEEE 802.1AB LLDP/LLDP-MED

IEEE 802.1D Spanning Tree Protocol (STP)

IEEE 802.1w Rapid Spanning Tree Protocol(RSTP)

IEEE 802.1s Multiple Spanning Tree Protocol(MSTP)

IEEE 802.1Q VLAN tagging

IEEE 802.1p Class of Service (CoS) prioritization

IEEE 802.1X port authentication

Resilience and Availability

IEEE 802.1D Spanning Tree Protocol (STP)

IEEE 802.1w Rapid Spanning Tree Protocol(RSTP)

IEEE 802.1s Multiple Spanning Tree Protocol(MSTP)

IEEE 802.3ad LACP (Max # Trunks/Links per Trunk): 8/8

Virtual Router Redundancy Protocol (VRRP)

Loop guard

ErrDisable recovery

MRSTP (ZyXEL Proprietary)

Dual configuration files

Dual images

Traffic Control

802.1Q static VLANs/dynamic VLANs: 1 K/4 K

Port-based VLAN

Protocol-based VLAN

IP subnet-based VLAN

VLAN ingress filtering

LACP algorithm of source/destination IP

GVRP

L2PT

Security

802.1X

Port security

Layer 2 MAC filtering

Layer 3 IP filtering

Layer 4 TCP/UDP socket filtering

BPDU transparency

Static MAC forwarding

Multiple RADIUS servers

Multiple TACACS+ servers

802.1x VLAN and 802.1p assignment by RADIUS

Login authentication by RADIUS

Login authentication by TACACS+

TACACS+ accounting

Authorization on RADIUS

Authorization on TACACS+

SSH v1/v2

SSL

Intrusion lock

MAC freeze

DHCP snooping

ARP inspection

Static IP-MAC-Port binding

Policy-based security filtering

Port isolation

IP source guard

Limit number of MAC per VLAN

MAC search

Guest VLAN

ACL packet filtering (IPv4/IPv6)

CPU protection

Interface related trap enable/disable (by port)

Quality of Service (QoS)

No. of hardware queues per port: 8

802.1p queuing method: SPQ, WRR, WFQ

Storm control: Broadcast, multicast, unknown unicast (DLF)

Port-based rate limiting (ingress/egress): 64/64 Kbps

Rate limiting per IP/TCP/UDP per port

Policy-based rate limiting

Policy-based bandwidth control granularity

802.3x flow control

802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable)

DiffServ (DSCP)

Layer 2 Multicast

L2 multicast

IGMP snooping (v1, v2, v3)

IGMP snooping fast leave

Configurable IGMP snooping timer and priority

IGMP snooping statistics

IGMP throttling

MVR support

IGMP filtering

IGMP snooping immediate leave

IGMP proxy mode & snooping mode selection

Manageability

SNMP v1, v2c, v3

SNMP trap group

RMON (1, 2, 3, 9)

ICMP echo/echo reply

Syslog

IEEE 802.1AB LLDP

IEEE 802.1AB LLDP-MED

IPv6 Management

IPv6 over Ethernet (RFC 2464)

IPv6 addressing architecture (RFC 4291)

Dual stack (RFC 4213)

ICMPv6 (RFC 4443)

Path MTU (RFC 1981)

Minimum path MTU size of 1280 (RFC 5095)

Encapsulation for maximum PMTU of 1500

Neighbor discovery (RFC 4861)

DHCPv6 relay

Device Management

ZyXEL iStackingTM

Web interface

Management through Console, Telnet, SNMP

Firmware upgrade by FTP

Remote firmware upgrade by FTP/Web

Configuration saving and retrieving

Multiple logins supported

Configure clone

Multilevel CLI

CLI (Cisco-like)

DHCP relay per VLAN

DHCP client

DHCP option 82

DHCP option 82 profile

Daylight saving

NTP

Port mirroring

RS-232 out-of-band console port

MIB

ZyXEL new private MIB

RFC 1066 TCP/IP-based MIB

RFC 1213, 1157 SNMPv2c/v3 MIB

RFC 1493 bridge MIB

RFC 1643 E...
