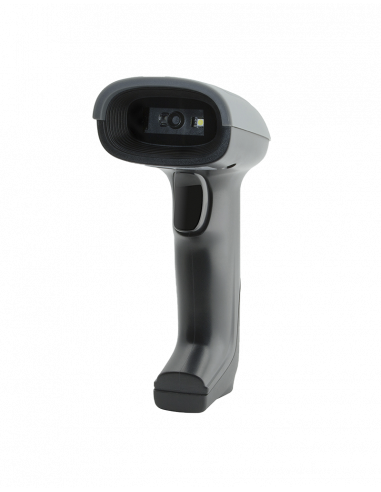

Leitor CBar. MS3-2D USB c/ Base

Model MS3-2D

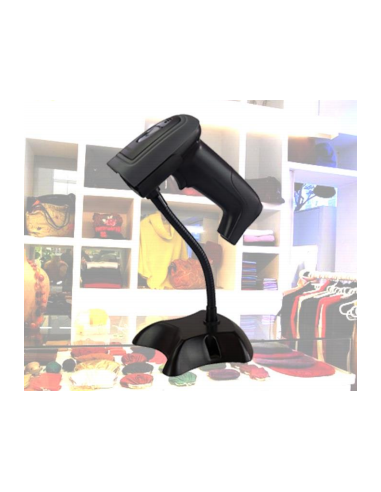

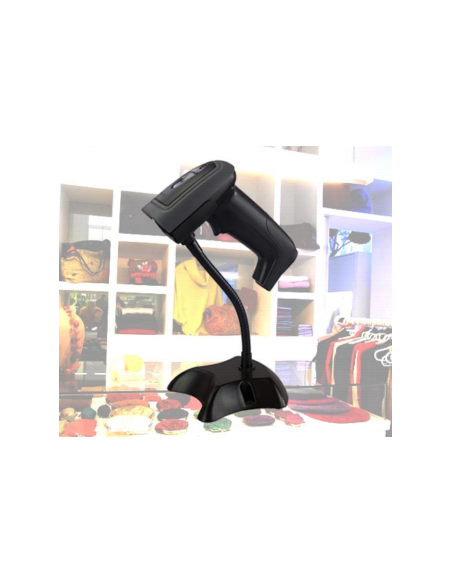

Barcode Scanner, 2D, with stand
Interface USB
Sensor Planar CMOS sensor
Light source Red CCD, white LED (lighting) Procesor 32-bit ARM MCU
Decoding
capability
1D: Codabar, Code39, Code32,
InterLeaved 2 of 5, Industrial 2
of 5, Matrix 2 of 5, Code93,
Code128, Cs1-28, UPC-A, UPCE, EAN/JAN-8, EAN-JAN-13,
ISSN, GS1 DATABAR (RSS14),
GS1 DATABAR Limited,
GS1DATABAR Expanded
2d: PDF417, QR CODE, MICRO
QR, DATAMATRIX, AZTEC CODE
Resolution Code39 3mil, QR 8,7mil, PDF417
5mil, PCS45%
Scanning speed 200scans/sec Scanning
method
Manual&Auto-sensing
Scanning area 5*5cm² - 30*30cm² Prompting mode Buzzer, indicator light (LED)
Printing contrast No lower than 35% Scanning angle Roll 0-360°, pitch ±65°, yaw±60°
IP Grade IP54 Power supply DC 5V
Operating
temperature
0 to 50°C/32 to 122°F Storage
temperature
0 to 50°C/32 to 122°F
Operating
humidity
5-95% (non-condensing) EDS protection 15KV air discharge
Shock resistance 1.5 free all on concrete surface Size 170mmx97mmx68m
