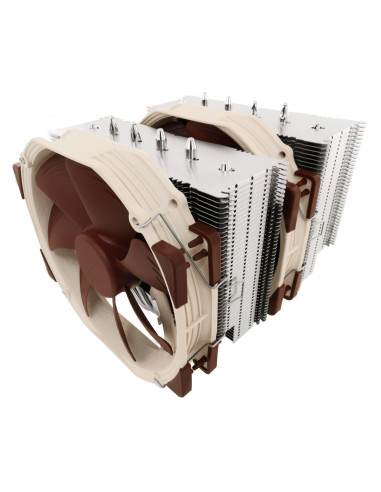

A versão SE-AM4 é uma edição especial dedicada para a plataforma AM4/AM5 (Ryzen) da AMD com o mais recente sistema de montagem SecuFirm2™ para AM4/AM5.Com duas das renomadas ventoinhas silenciosas NF-A15 PWM de 140 mm, a comprovada pasta térmica NT-H1 da Noctua e uma garantia total de 6 anos do fabricante, o NH-D15 SE-AM4 forma uma solução completa de qualidade premium que representa uma escolha de luxo para overclockers e entusiastas silenciosos que se esforçam para ajustar seus sistemas AM4/AM5 ao máximo.
Cooler Specification
Socket compatibility
AMD AM4, AM5
Height (without fan)
160 mm
Width (without fan)
150 mm
Depth (without fan)
135 mm
Weight (without fan)
980 g
Height (with fan)
165 mm
Width (with fan)
150 mm
Depth (with fan)
161 mm
Weight (with fan)
1320 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR
183
Max. TDP
see NSPR
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery
Warranty
6 Years
FAN Specification
Model
2x Noctua NF-A15 PWM
Bearing
SSO2
Max. rotational speed (+/- 10%)
1500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1200 RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 RPM
Max. airflow
140,2 m³/h
Max. airflow with L.N.A.
115,5 m³/h
Max. acoustical noise
24,6 dB(A)
Max. acoustical noise with L.N.A.
19,2 dB(A)
Input power (max.)
1,56 W
Voltage range
12 V
MTTF
> 150.000 h
Socket compatibility
AMD AM4, AM5
Height (without fan)
160 mm
Width (without fan)
150 mm
Depth (without fan)
135 mm
Weight (without fan)
980 g
Height (with fan)
165 mm
Width (with fan)
150 mm
Depth (with fan)
161 mm
Weight (with fan)
1320 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR
183
Max. TDP
see NSPR
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery
- 2x NF-A15 PWM premium fan
- 2x Low-Noise Adaptor (L.N.A.)
- 4-pin PWM y-cable
- NT-H1 high-grade thermal compound
- SecuFirm2™ AM4/AM5 mounting-kit
- Noctua metal case-badge
Warranty
6 Years
FAN Specification
Model
2x Noctua NF-A15 PWM
Bearing
SSO2
Max. rotational speed (+/- 10%)
1500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1200 RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 RPM
Max. airflow
140,2 m³/h
Max. airflow with L.N.A.
115,5 m³/h
Max. acoustical noise
24,6 dB(A)
Max. acoustical noise with L.N.A.
19,2 dB(A)
Input power (max.)
1,56 W
Voltage range
12 V
MTTF
> 150.000 h
- Referências:
- Marca
- Noctua
- Modelo
- Cooler Noctua NH-D15SE-AM4
- Part Number
- NH-D15 SE-AM4
- EAN
- 9010018000061
- Código de Produto
- 903095
- Características gerais:
- Tipo de produto
- Cooler CPU
- Indicado para
- AMD AM4, AM5
- Ventilador:
- PWM
- Sim
- Bearing
- SSO2
- Velocidade (RPM)
- 300 a 1500 RPM com PWM
- Potência
- 1.56 W
- Voltagem
- 12 V
- Nível de ruído (dB)
- 24,6 max
- Fluxo de ar
- 140,2 m³/h
- Luzes LED
- Não
- Outros:
- Link Fabricante
- https://noctua.at/en/nh-d15-se-am4
- Garantia
- 1 Ano + 2º/3ºAno DL84/2021 (Consumidor Final)
