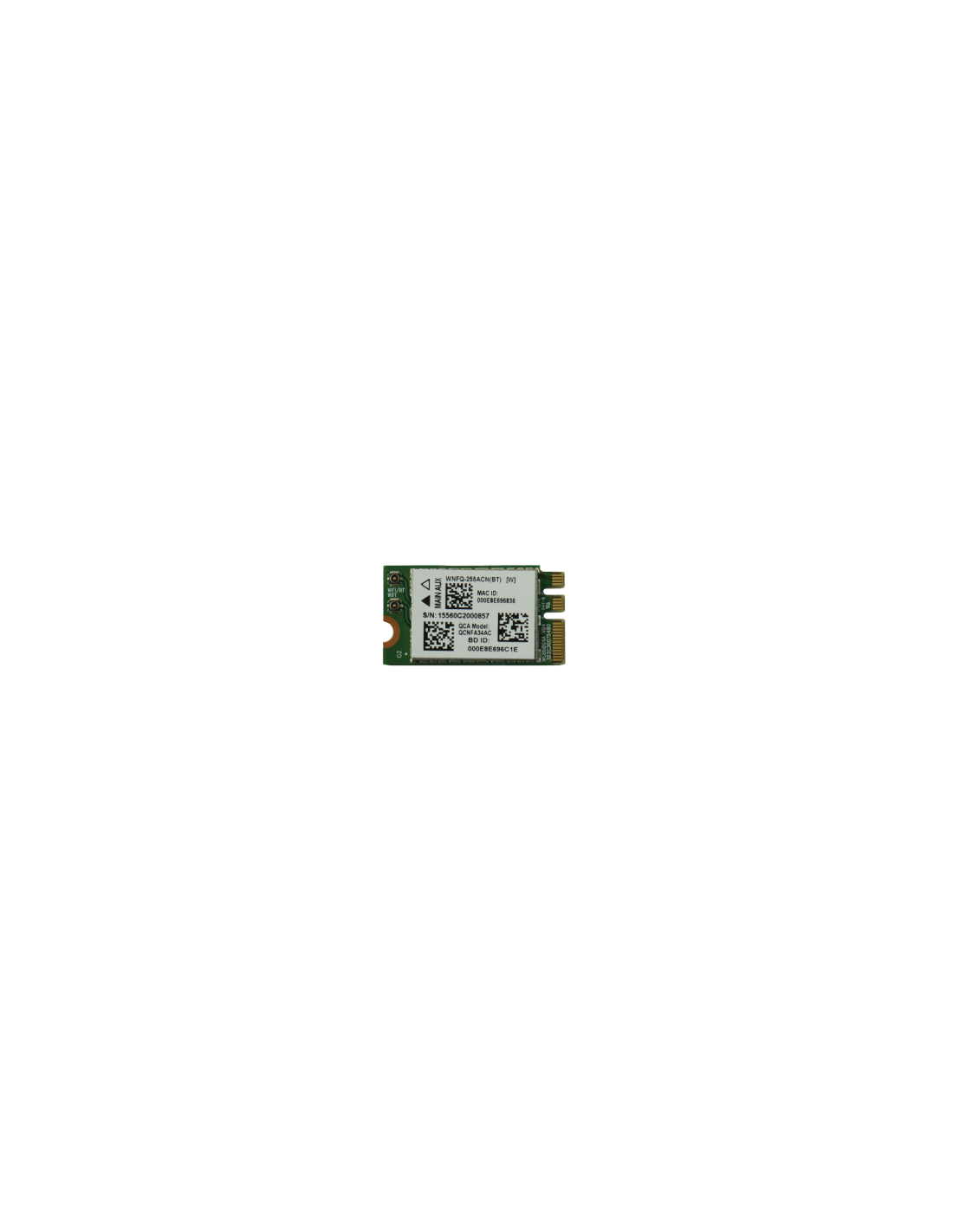

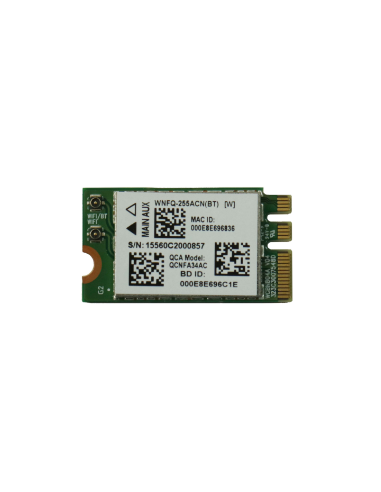

Adaptador Bluetooth Sparklan WNFQ-255ACN

Standard





IEEE802.11ac/b/g/n, Bluetooth V4.1,V4.0 LE, V3.0+HS, V2.1+EDR





Chipset





Mac/BB/RF



Qualcomm Atheros QCA6174





Host Interface





PCI express: WLAN, USB2.0: Bluetooth





Radio





Antenna



2 x IPEX MHF4 connector,2T2R

Support WLAN / BT co-existence





Operating Frequency



11b/g/n: 2.412GHz~2.4835GHz

11ac/a/n: 5.15GHz~5.85GHz

BT: 2.402GHz~2.480GHz





Modulation



802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11b: DSSS (DBPK, DQPSK, CCK)
802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
BT: Header: GFSK, Payload 2M: 4-DQPSK, Payload 3M: 8-DPSK





Output Power



802.11a: 11dBm ± 2dBm@54Mbps
802.11b: 19dBm ± 2dBm@11Mbps
802.11g: 16dBm ± 2dBm@54Mbps
802.11gn (HT20): 16dBm ± 2dBm@MCS7
802.11gn (HT40): 16dBm ± 2dBm@MCS7
802.11an (HT20): 10dBm ± 2dBm@MCS7
802.11an (HT40): 10dBm ± 2dBm@MCS7
802.11ac (VHT80): 6dBm ± 2dBm@MCS9
BT: (Class 1 Device) 0 ≤Output Power ≤+10dBm





Receive Sensitivity



802.11a: ≤-65dBm@54Mbps
802.11b: ≤-76dBm@11Mbps
802.11g: ≤-65dBm@54Mbps
802.11gn (HT20):-64dBm@MCS7
802.11gn (HT40):-61dBm@MCS7
802.11an (HT20):-64dBm@MCS7
802.11an (HT40):-61dBm @MCS7
802.11ac (VHT80): ≤ -51dBm@MCS9
BT: < 0.1%ber at -70dbm





Power consumption





Continue TX



605mA





Continue RX



214mA





Operating Voltage





DC 3.3V ± 10% I/O supply voltage





Environmental





Temperature Range



0 ~ 70°C (Operating) -40 ~ 80°C (Storing)





Humidity (Non-Condensing)



5 ~ 90% (Operating) 5 ~ 90% (Storing)





Physical Specification





Dimensions



16.5mm x 30mm x 2.0m (± 0.5mm)





Weight



≤1.9g





Software





Driver



Win7/Win8.1/Win10





Security



WEP, WPA, WPA2, 802.1x
