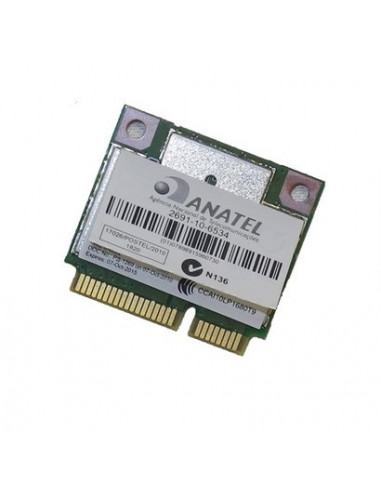

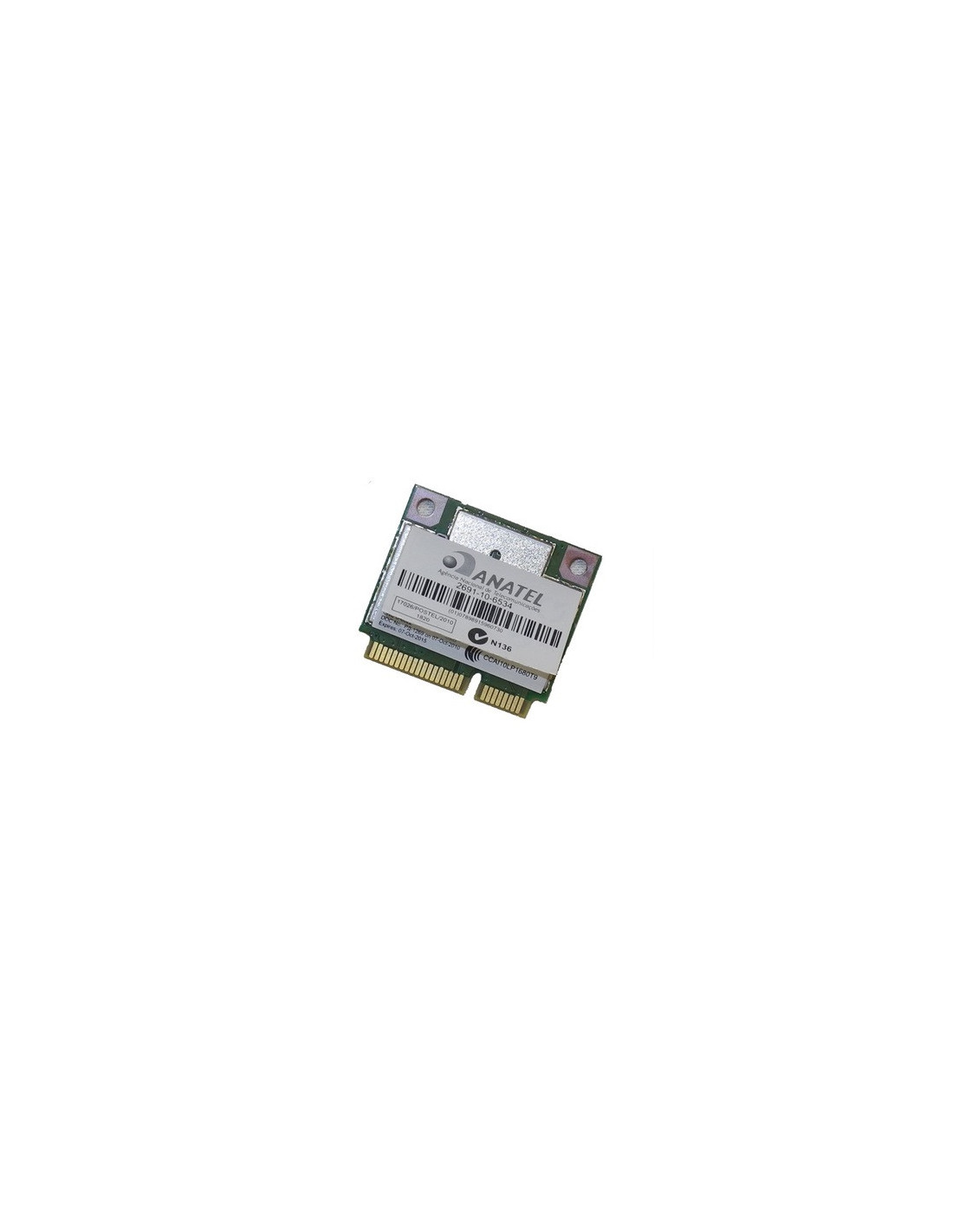

Placa de Rede Wireless Profisional Sparklan WPEA-121N - 802.11b/g/n - Chipset Atheros - Modo AP Dedicado
Superior Performance with Longer Range
SparkLAN WPEA-121N, embedded with Atheros AR9382 chipset, incorporated
with Atheros XSPAN with Signal Sustain Technology (SST). It supports 2T2R (2
transmit 2 receive) MIMO technology, which delivers superior throughput up to
300Mbps and improves the overall Wi-Fi coverage area.
Ideal for High-End Notebook
The module adopts the latest 802.11n Dual-Band technology (2.4GHz and 5GHz).
It targets enterprise and high-end consumer notebooks. The solution enables up
to 6 times the throughput of 802.11a/g solutions.
Industry-Leading Power Efficiency
WPEA-121N, featuring Atheros’ highest level of 802.11n WLAN throughput, enables
a high performance, cost effective, low power, and compact solution for
developers to easily integrate with embedded computing platforms.
Standard
802.11a/b/g/n
Chipset
Mac/BB /RF Atheros AR9382
Host Interface
Half Mini PCI Express
Radio
Antenna 2 x U.FL connectors, 2T2R
Operating Frequency 802.11b/g/n ISM Band: 2.412 ~ 2.4835 GHz
802.11a ISM Band: 5.15 ~ 5.85 GHz
Modulation
802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11b: DSSS (DBPSK, DQPSK, CCK)
802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
Output Power
802.11a: 12dBm ± 2dBm
802.11b: 17dBm ± 2dBm
802.11g: 16dBm ± 2dBm
802.11gn HT20: 15dBm ± 2dBm@MCS7
802.11gn HT40: 14dBm ± 2dBm@MCS7
802.11an HT20: 12dBm ± 2dBm@MCS7
802.11an HT40: 11dBm ± 2dBm@MCS7
Receive Sensitivity
802.11a: ≤ -76dBm@54Mbps
802.11b: ≤ -85dBm@11Mbps
802.11g: ≤ -76dBm@54Mbps
802.11gn HT20: ≤ -75dBm@MCS7
802.11gn HT40: ≤ -72dBm@MCS7
802.11an HT20: ≤ -74dBm@MCS7
802.11an HT40: ≤ -71dBm@MCS7
Power consumption
Continue TX Max 600mA
Continue RX Max 237mA
Operating Voltage
DC 3.3 V ±10% I/O supply voltage
Environmental
Temperature Range 0 ~ 75°C (Operating) -40~85°C (Storing)
Humidity
(non-condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing)
Physical Specification
Dimensions 30 mm x 26.8 mm x 4.5mm
Weight ≦9g
Software
Driver
Windows 2000/ XP/ Vista/ Win 7, Linux, Android by request
Security 64/128-bits WEP, WPA, WPA2
SparkLAN WPEA-121N, embedded with Atheros AR9382 chipset, incorporated
with Atheros XSPAN with Signal Sustain Technology (SST). It supports 2T2R (2
transmit 2 receive) MIMO technology, which delivers superior throughput up to
300Mbps and improves the overall Wi-Fi coverage area.
Ideal for High-End Notebook
The module adopts the latest 802.11n Dual-Band technology (2.4GHz and 5GHz).
It targets enterprise and high-end consumer notebooks. The solution enables up
to 6 times the throughput of 802.11a/g solutions.
Industry-Leading Power Efficiency
WPEA-121N, featuring Atheros’ highest level of 802.11n WLAN throughput, enables
a high performance, cost effective, low power, and compact solution for
developers to easily integrate with embedded computing platforms.
Standard
802.11a/b/g/n
Chipset
Mac/BB /RF Atheros AR9382
Host Interface
Half Mini PCI Express
Radio
Antenna 2 x U.FL connectors, 2T2R
Operating Frequency 802.11b/g/n ISM Band: 2.412 ~ 2.4835 GHz
802.11a ISM Band: 5.15 ~ 5.85 GHz
Modulation
802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11b: DSSS (DBPSK, DQPSK, CCK)
802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
Output Power
802.11a: 12dBm ± 2dBm
802.11b: 17dBm ± 2dBm
802.11g: 16dBm ± 2dBm
802.11gn HT20: 15dBm ± 2dBm@MCS7
802.11gn HT40: 14dBm ± 2dBm@MCS7
802.11an HT20: 12dBm ± 2dBm@MCS7
802.11an HT40: 11dBm ± 2dBm@MCS7
Receive Sensitivity
802.11a: ≤ -76dBm@54Mbps
802.11b: ≤ -85dBm@11Mbps
802.11g: ≤ -76dBm@54Mbps
802.11gn HT20: ≤ -75dBm@MCS7
802.11gn HT40: ≤ -72dBm@MCS7
802.11an HT20: ≤ -74dBm@MCS7
802.11an HT40: ≤ -71dBm@MCS7
Power consumption
Continue TX Max 600mA
Continue RX Max 237mA
Operating Voltage
DC 3.3 V ±10% I/O supply voltage
Environmental
Temperature Range 0 ~ 75°C (Operating) -40~85°C (Storing)
Humidity
(non-condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing)
Physical Specification
Dimensions 30 mm x 26.8 mm x 4.5mm
Weight ≦9g
Software
Driver
Windows 2000/ XP/ Vista/ Win 7, Linux, Android by request
Security 64/128-bits WEP, WPA, WPA2
- Conectividade:
- Interface
- Mini-PCIe
- Frequência
- 2.400-2.4835GHz
- Interno/Externo
- Interno
- Normas e Protocolos de Comunicação
- IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Modos Wireless
- AP; Station Infrastructure; AP Bridge Point to Point; AP Bridge Point to Multipoint; AP Bridge WDS (Wireless Distribution System); Universal Repeater
- Tecnologia de Modulação
- DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
- Codificação / Segurança
- Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
- Antena:
- Qtd. de Antenas
- 2
- Tipo de antena
- Detachable Omni Directional (RP-SMA)
- Velocidade do Sinal:
- 11n
- Up to 300Mbps(dynamic)
- 11g
- Up to 54Mbps(dynamic)
- 11b
- Up to 11Mbps(dynamic)
- Outras Informações:
- Garantia
- 1 Ano + 2º/3ºAno DL84/2021 (Consumidor Final)
- Identificação do Produto:
- Marca
- Sparklan
- Modelo
- WPEA-121N
- Part Number
- WPEA-121N
- Código de Produto
- 783091
