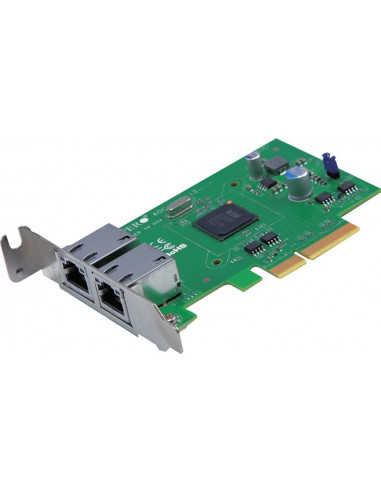

Placa Rede SuperMicro Intel® i35 Dual Port Gigabit PCI-e LP
Supermicro
240-AOC-SGP-I2
Esgotado
159,74 €
Com IVA
The Most Compact and Cost Effective 2-port Ethernet Controller in the Market With the AOC-SGP-i2, Supermicro has extended the boundaries of Ethernet technology to create the most compact, cost effective, and feature-packed 2-port Ethernet controller in the market, allowing it to fit easily into the tightest high-density server add-on card locations. With ultra-small footprint and rich of power management technology feature set, the AOCSGP-i2 represents the next step in the Gigabit Ethernet networking evolution for enterprise and data center environments
Key Features
• Low-Profile Standard Form Factor
• PCI Express 2.1 (2.5GT/s or 5GT/s)
• 2 RJ-45 ports
• Intel® I/O Acceleration Technology (I/O AT)
• VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments
• Jumbo Frame Support up to 9.5KB
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Low Power Consumption (4W Typical)
• iSCSI Remote Boot Support
• Flexible I/O Virtualization and Quality of Service (QoS)
• PXE Boot Support
• RoHS compliant 6/6
Specifications
• General:
- Intel® i350 GbE controller
- Compact size low-profile standard form factor
- PCI-E 2.1 x4 (2.5GT/s or 5GT/s) interface
- Dual RJ-45 connectors
- Intel® PROSet Utility for Windows® Device Manager
- Intel® I/O Acceleration Technology (I/O AT)
• Ethernet Features
- IEEE 802.3 auto-negotiation for speed, duplex, and flow control
- IEEE 802.3x and 802.3z compliant flow control support
- Automatic cross-over detection function (MDI/MDI-X)
- 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant
- IEEE 1588 protocol and 802.1AS implementation
• Power Management and Efficiency
- IEEE 802.3az Energy Efficient Ethernet (EEE) which reduces power consumption of the PHY by about 50%
- DMA Coalescing reduces platform power consumption
- Active State Power Management (ASPM) support
- LAN disable function - MAC Power Management controls
- Low Power Link Up Link Speed Control
- Power consumption: 4W
• Virtualization Features
- VM to VM Packet forwarding (Packet Loopback)
- Eight TX and RX queue pairs per port to support VMWare NetQueue and Microsoft VMQ
- Flexible Port Partitioning: 32 Virtual Functions
- PC-SIG SR-IOV implementation
- IEEE 802.1q VLAN support - IEEE 802.1q advanced packet filtering
• Performance Features
- TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage
- Low Latency Interrupts
- Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage
- Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments
- Jumbo Frames support up to 9.5K Bytes
- Intelligent interrupt generation
• Remote Boot Options
- Preboot eXecution Environment (PXE) support
- iSCSI remote boot for Windows, Linux, and VMware
• OS Support
- Windows® XP SP3, Vista SP2, 7 SP1 2003 SP2, 2008 SP2, 2008 R2S
- RedHat EL 5.5, 6.0; SuSe SLES 10 SP3, 11 SP1
- FreeBSD 8.0 - VMware ESX 4.0, 4.1, 5.0 - Xen
• Cables Support - RJ-45 Category-5/5e up to 100m
• Operating Conditions
- Operating temperature: 0°C to 55°C (32°F to 131°F)
- Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Physical Dimensions - Card PCB dimensions: 9.91cm (3.90in) x 6.90cm (2.73in) (L x H)
- Height of end brackets: standard 12cm (4.725in), low-profile 7.94cm (3.13in)
• Low-Profile Standard Form Factor
• PCI Express 2.1 (2.5GT/s or 5GT/s)
• 2 RJ-45 ports
• Intel® I/O Acceleration Technology (I/O AT)
• VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments
• Jumbo Frame Support up to 9.5KB
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Low Power Consumption (4W Typical)
• iSCSI Remote Boot Support
• Flexible I/O Virtualization and Quality of Service (QoS)
• PXE Boot Support
• RoHS compliant 6/6
Specifications
• General:
- Intel® i350 GbE controller
- Compact size low-profile standard form factor
- PCI-E 2.1 x4 (2.5GT/s or 5GT/s) interface
- Dual RJ-45 connectors
- Intel® PROSet Utility for Windows® Device Manager
- Intel® I/O Acceleration Technology (I/O AT)
• Ethernet Features
- IEEE 802.3 auto-negotiation for speed, duplex, and flow control
- IEEE 802.3x and 802.3z compliant flow control support
- Automatic cross-over detection function (MDI/MDI-X)
- 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant
- IEEE 1588 protocol and 802.1AS implementation
• Power Management and Efficiency
- IEEE 802.3az Energy Efficient Ethernet (EEE) which reduces power consumption of the PHY by about 50%
- DMA Coalescing reduces platform power consumption
- Active State Power Management (ASPM) support
- LAN disable function - MAC Power Management controls
- Low Power Link Up Link Speed Control
- Power consumption: 4W
• Virtualization Features
- VM to VM Packet forwarding (Packet Loopback)
- Eight TX and RX queue pairs per port to support VMWare NetQueue and Microsoft VMQ
- Flexible Port Partitioning: 32 Virtual Functions
- PC-SIG SR-IOV implementation
- IEEE 802.1q VLAN support - IEEE 802.1q advanced packet filtering
• Performance Features
- TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage
- Low Latency Interrupts
- Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage
- Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments
- Jumbo Frames support up to 9.5K Bytes
- Intelligent interrupt generation
• Remote Boot Options
- Preboot eXecution Environment (PXE) support
- iSCSI remote boot for Windows, Linux, and VMware
• OS Support
- Windows® XP SP3, Vista SP2, 7 SP1 2003 SP2, 2008 SP2, 2008 R2S
- RedHat EL 5.5, 6.0; SuSe SLES 10 SP3, 11 SP1
- FreeBSD 8.0 - VMware ESX 4.0, 4.1, 5.0 - Xen
• Cables Support - RJ-45 Category-5/5e up to 100m
• Operating Conditions
- Operating temperature: 0°C to 55°C (32°F to 131°F)
- Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Physical Dimensions - Card PCB dimensions: 9.91cm (3.90in) x 6.90cm (2.73in) (L x H)
- Height of end brackets: standard 12cm (4.725in), low-profile 7.94cm (3.13in)
- Referências:
- Interfaces
- Low-Profile
- Conectividade:
- Interface
- PCIe v2.1
- Porta Ligação
- 2 x RJ45
- Velocidade de transmissão
- 10,100,1000 Mbit/s
- Normas e Protocolos de Comunicação
- IEEE 802.1Q, IEEE 802.3, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
- Cablagem :
- Rede:
- 10 Base-T
- Sim
- 100 Base-T
- Sim
- 1000 Base-T
- Sim
- Condições ambientais:
- Temperatura em funcionamento
- 0 - 55 °C
- Limite de temperaturas
- -40 - 70 °C
- Certificações :
- Certificações
- RoHS
- Outras Informações:
- Garantia
- 1 Ano + 2º/3ºAno DL84/2021 (Consumidor Final)
- Marca
- SuperMicro
- Modelo
- SUPERMICRO Intel® i350 GbE controller
- Part Number
- AOC-SGP-I2
- Código de Produto
- 783029
