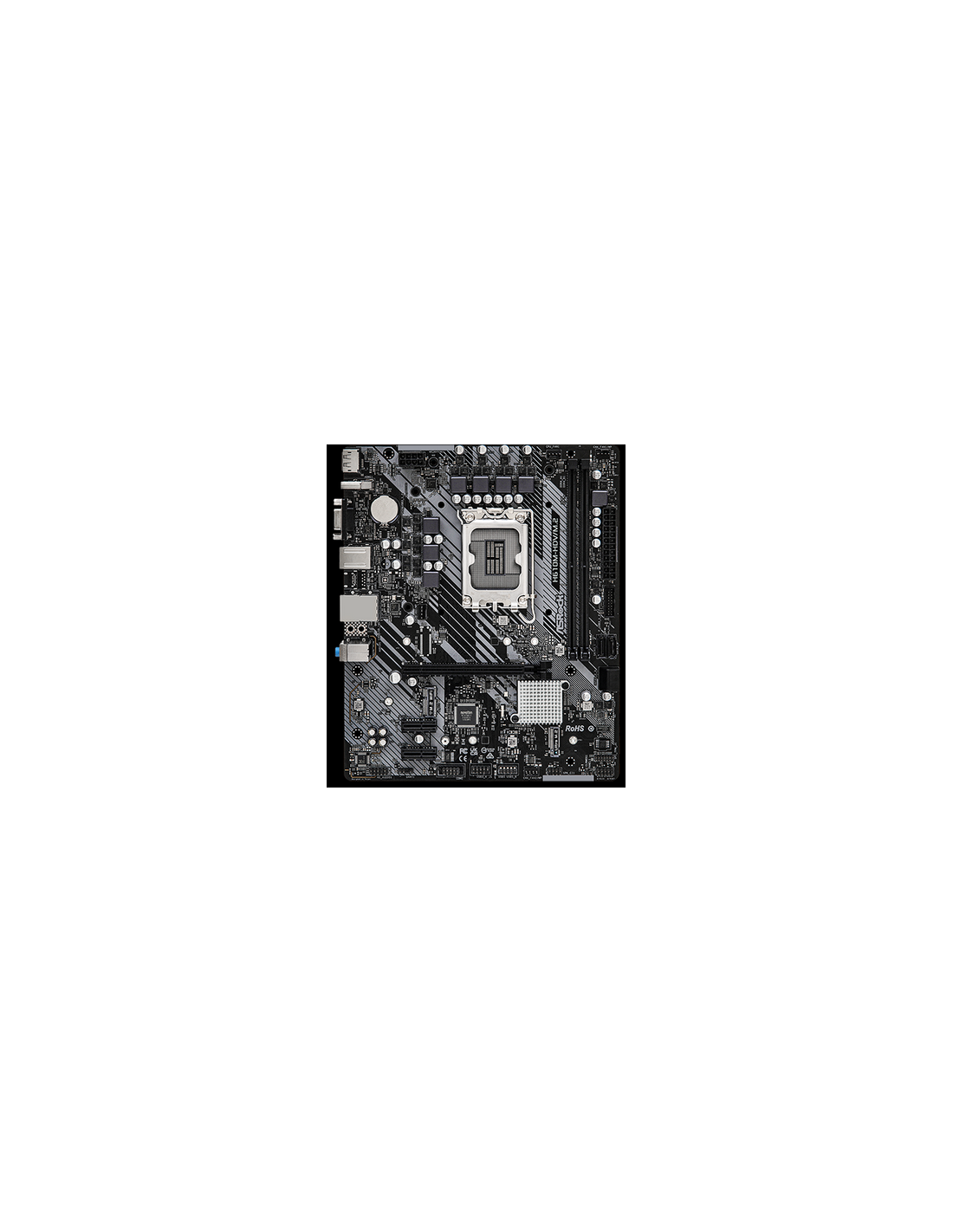

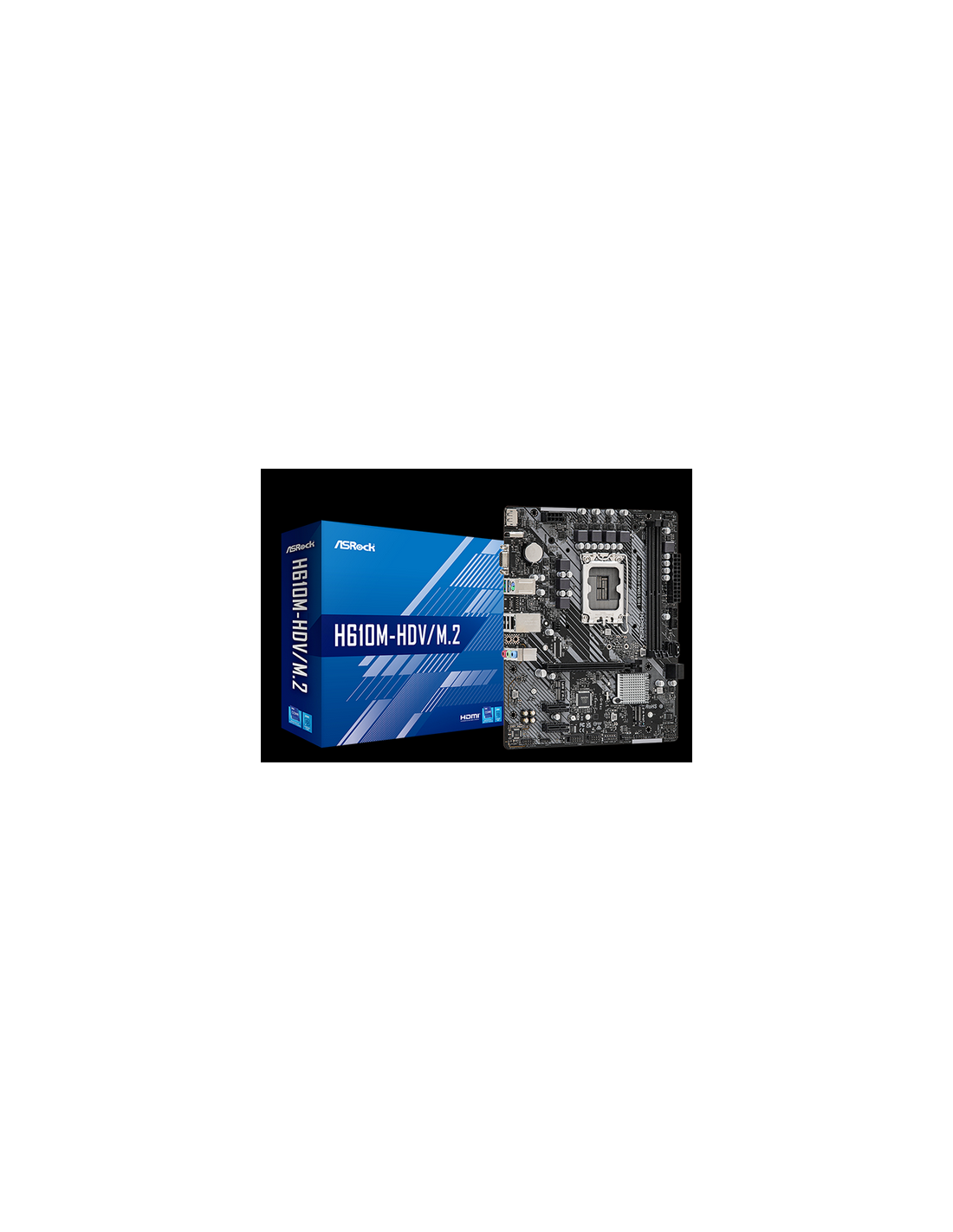

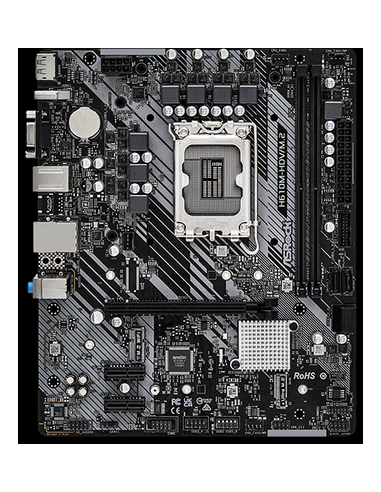

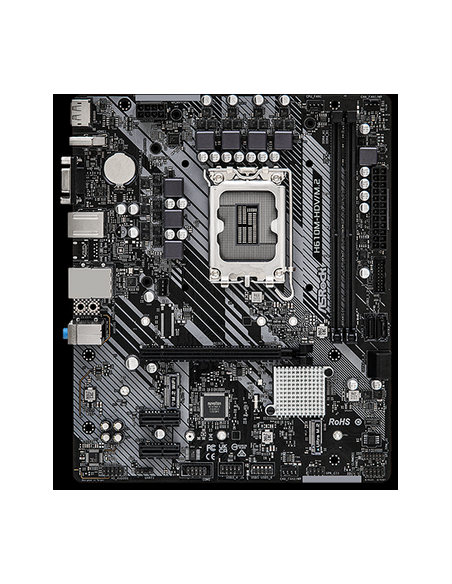

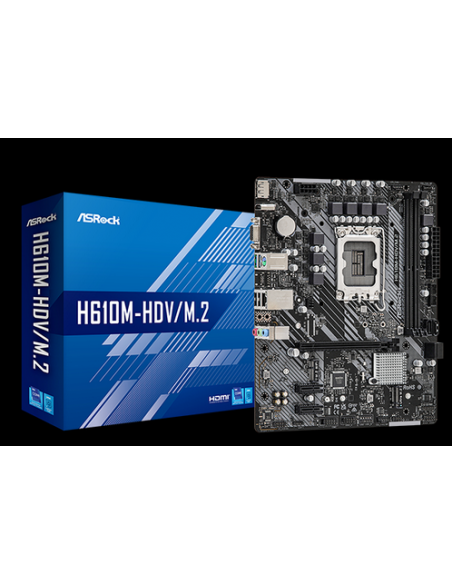

MotherBoard Skt1700 Asrock H610M-HDV/M.2 R2.0 RCDC
AsRock
145-90-MXBJH0-A0UAYZ#RCDC
Esgotado
60,74 €
Com IVA
Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
6 Phase Power Design
2 x DDR4 DIMMs
Supports Dual Channel, up to 3200
1 PCIe 4.0 x16, 2 PCIe 3.0 x1
1 M.2 Key-E for WiFi
Graphics Output Options: HDMI, DisplayPort, D-Sub
Realtek ALC887/897 7.1 CH HD Audio Codec
4 SATA3
1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
4 USB 3.2 Gen1 (2 Rear, 2 Front)
5 USB 2.0 (2 Rear, 3 Front)
Intel® Gigabit LAN
Unidade recondicionada
6 Phase Power Design
2 x DDR4 DIMMs
Supports Dual Channel, up to 3200
1 PCIe 4.0 x16, 2 PCIe 3.0 x1
1 M.2 Key-E for WiFi
Graphics Output Options: HDMI, DisplayPort, D-Sub
Realtek ALC887/897 7.1 CH HD Audio Codec
4 SATA3
1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
4 USB 3.2 Gen1 (2 Rear, 2 Front)
5 USB 2.0 (2 Rear, 3 Front)
Intel® Gigabit LAN
Unidade recondicionada
- Referências:
- Carateristicas Gerais:
- Formato da Motherboard
- Micro ATX
- Socket / Processador
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- Chipset
- Intel® H610
- Processadores Compatíveis
- https://www.asrock.com/mb/Intel/H610M-HVSM.2%20R2.0/index.asp#CPU
- Memória:
- Tipos de memórias suportadas
- Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel® Extreme Memory Profile (XMP) 2.0
- Número de slots de memória
- 2 x DDR4 DIMM Slots
- Tipo de slots de memória
- Dual Channel DDR4 Memory Technology
- Memória máxima
- 64GB
- Audio, Video e Rede:
- Gráficos
- Intel® Xe Graphics Architecture (Gen 12)
- Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Rede
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - 1 x Realtek RTL8111H

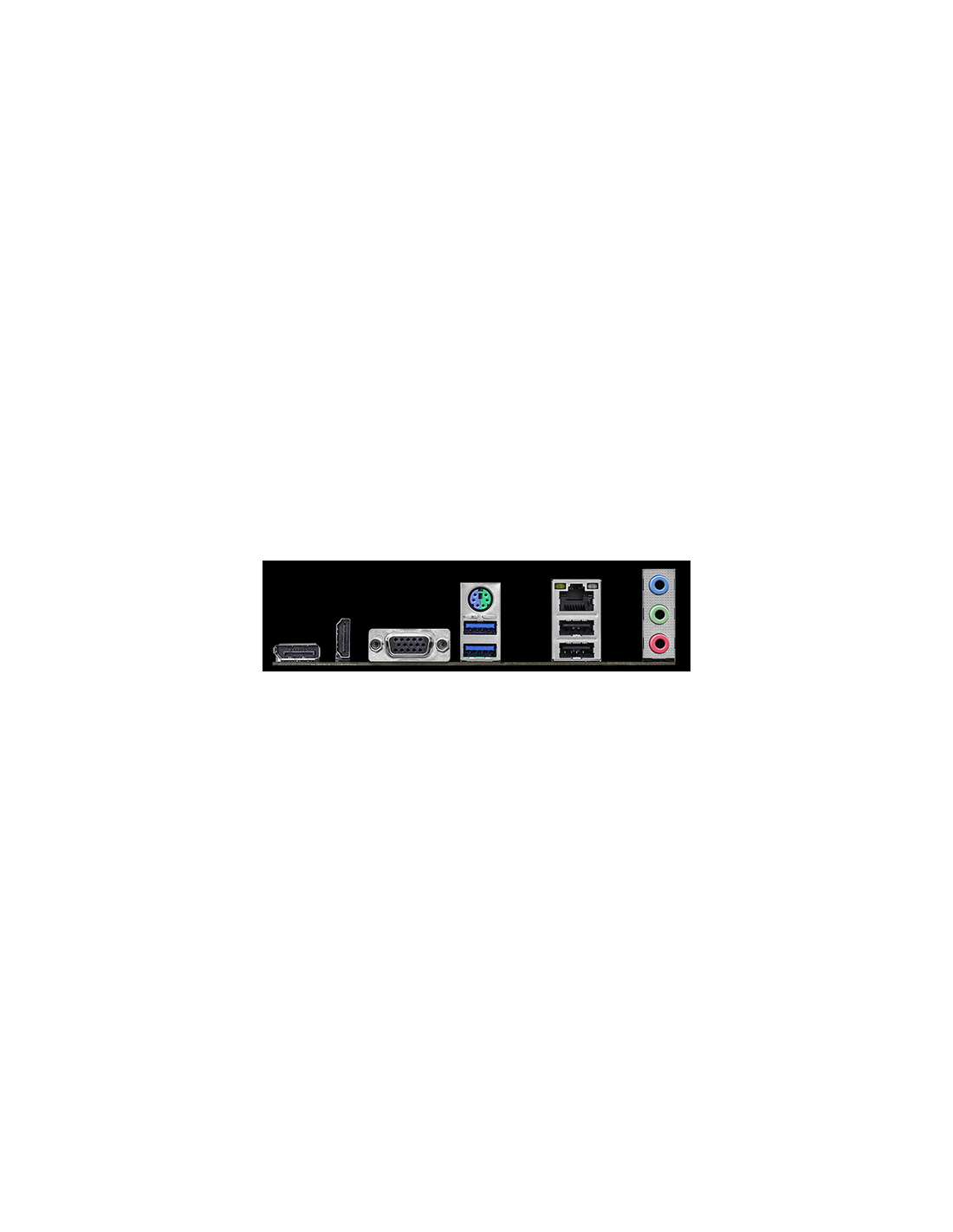

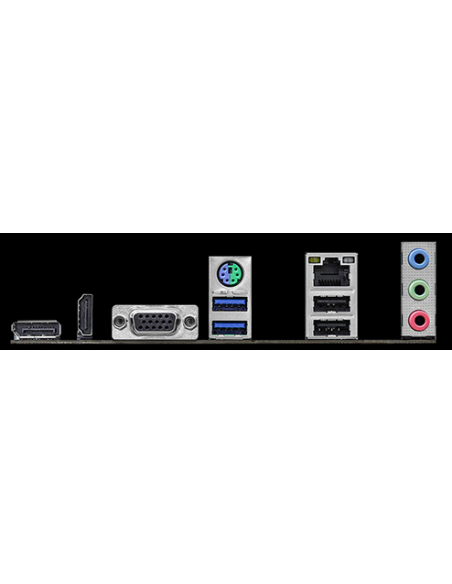

- Portas E/S:
- USB 2.0
- 2 x USB 2.0 Ports (Supports ESD Protection)
- USB 3.2 (Ger. 1)
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- VGA
- 1 x D-Sub port
- HDMI
- 1 x HDMI port
- Mini DP / Display port
- 1 x DisplayPort
- PS/2
- 1 x PS/2 Mouse/Keyboard Port
- Rj45
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- Conectores internos:
- SATA3
- 4 x SATA3 6.0 Gb/s Connectors
- TPM
- 1 x SPI TPM Header
- USB 2.0 Header
- 2 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- USB 3.2 Gen2 Header
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
- Conector da CPU Fan (4-pin)
- 1 x CPU Fan Connector (4-pin)* (*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.)
- CPU Optional/Water Pump Fan Co
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** (** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.)
- Chassis Intrusion Header
- 1 x Chassis Intrusion and Speaker Header
- Conector do Painel de Audio Frontal
- 1 x Front Panel Audio Connector
- Slots de expansão:
- PCIe x16
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*
- PCIe X1
- 2 x PCIe 3.0 x1 slot
- M.2
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Dados Logísticos :
- Dimensões
- 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
- Outras Informações:
- Garantia
- 1 Ano + 2º/3ºAno DL84/2021 (Consumidor Final)
- Certificações
- FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)
- Acessórios
- Quick Installation Guide, Support CD, I/O Shield; 2 x SATA Data Cables; 1 x Screw for M.2 Socket
- Marca
- ASRock
- Modelo
- H610M-HDV/M.2 R2.0
- Part Number
- 90-MXBJH0-A0UAYZ
- EAN
- 4710483939860
- Código de Produto
- 902139
