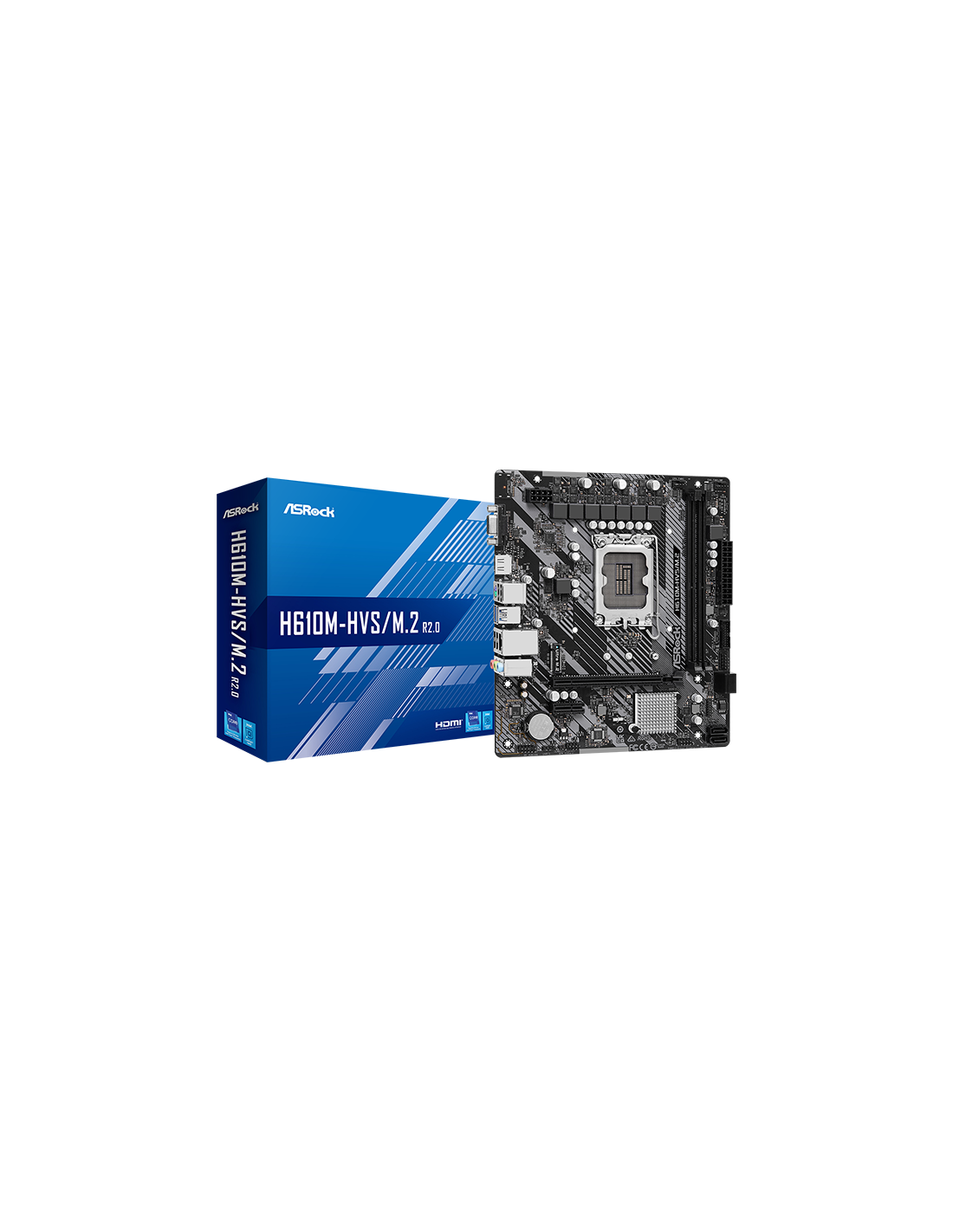

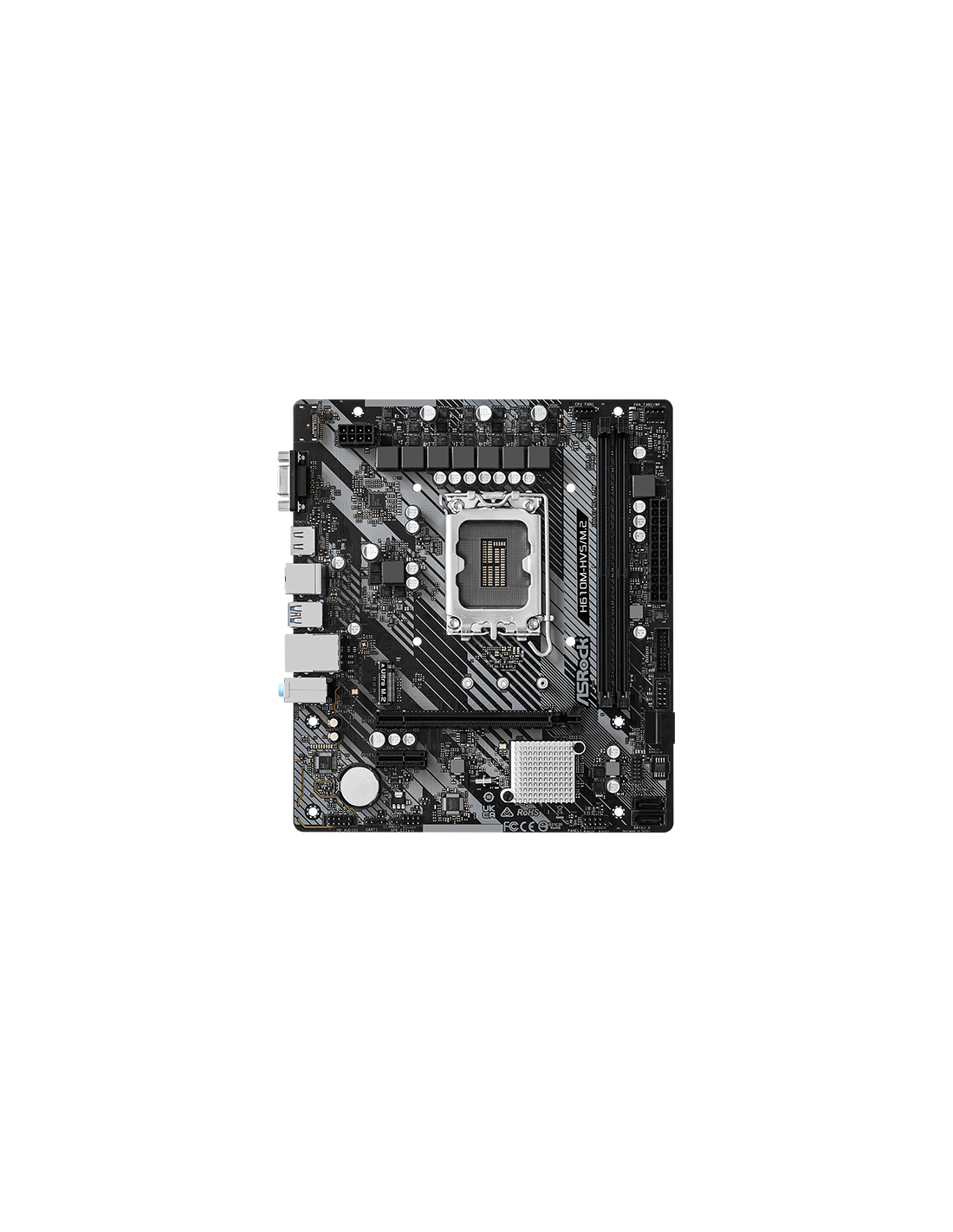

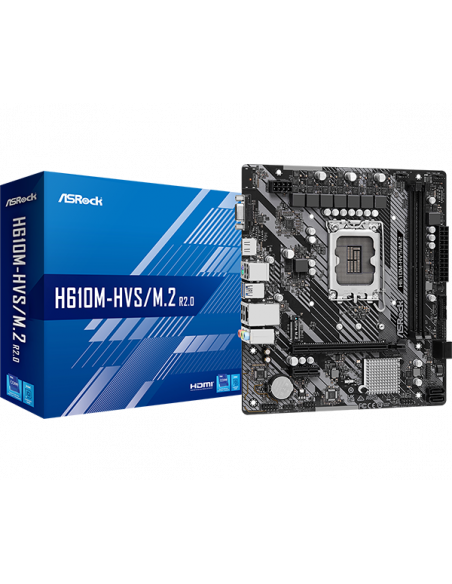

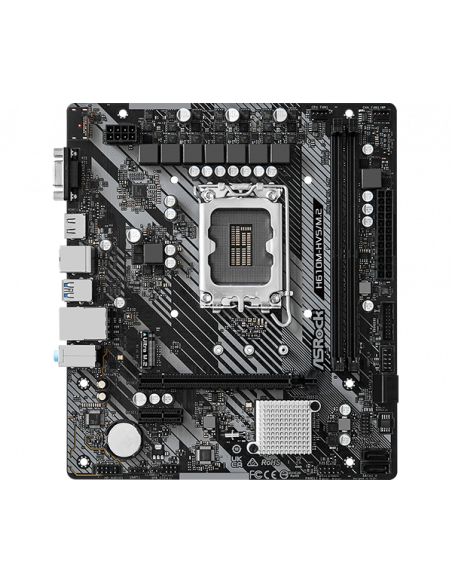

MotherBoard Skt1700 Asrock H610M-HVS/M.2 R.2 RCDC

Marca: AsRock

Referência 145-90-MXBJJ0-A0UAYZ#RCDC

Esgotado

69,90 €

Com IVA

Ao contrário das motherboards tradicionais que usam energia analógica, este modelo usa um design PWM (modulação por largura de pulso) digital de próxima geração, que fornece tensão Vcore da CPU de forma mais eficiente e suave, para que a estabilidade e a vida útil da placa-mãe sejam bastante aprimoradas.
Suporta processadores de 14ª,13ª e 12ª Geração Intel® (LGA1700)

Unidade recondicionada

Verificar Compatibilidade de CPU´s
https://www.asrock.com/mb/Intel/H610M-HVSM.2%20R2....
Unique Feature
ASRock Super Alloy
- Premium Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
- Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
- 6+1+1 Power Phase design
- Supports Intel^® Hybrid Technology
- Supports Intel^® Turbo Boost Max 3.0 Technology
Chipset
- Intel^® H610
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 3200
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel^® Extreme Memory Profile (XMP) 2.0
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment
Graphics
- Intel^® X^e Graphics Architecture (Gen 12)
- Dual graphics output: support HDMI and D-Sub ports by independent display controllers
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port

* Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Supports Surge Protection
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- 1 x Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE1)

*Supports NVMe SSD as boot disks
Storage
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Connector
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

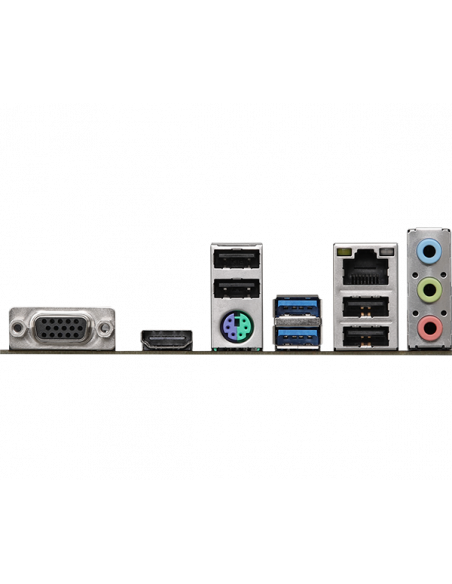

Rear Panel I/O
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
Hardware Monitor
- Fan Tachometer: CPU, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V
Form Factor
- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
- Solid Capacitor design
OS
- Microsoft Windows^® 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

Referências:
Carateristicas Gerais:
Formato da Motherboard: Micro ATX
Socket / Processador: Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
Chipset: Intel® H610
Processadores Compatíveis: https://www.asrock.com/mb/Intel/H610M-HVSM.2%20R2.0/index.asp#CPU
BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI support
Memória:
Tipos de memórias suportadas: Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel® Extreme Memory Profile (XMP) 2.0
Número de slots de memória: 2 x DDR4 DIMM Slots
Tipo de slots de memória: Dual Channel DDR4 Memory Technology
Memória máxima: 64GB
Audio, Video e Rede:
Gráficos: Intel® Xe Graphics Architecture (Gen 12)
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Rede: PCIE x1 Gigabit LAN 10/100/1000 Mb/s - 1 x Realtek RTL8111H
Portas E/S:
USB 2.0: 4 x USB 2.0 Ports (Supports ESD Protection)
USB 3.2 (Ger. 1): 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
VGA: 1 x D-Sub port
HDMI: 1 x HDMI port
PS/2: 1 x PS/2 Mouse/Keyboard Port
Rj45: 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Conectores internos:
SATA3: 4 x SATA3 6.0 Gb/s Connectors
TPM: 1 x SPI TPM Header
USB 2.0 Header: 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
USB 3.2 Gen2 Header: 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Conector da CPU Fan (4-pin): 1 x CPU Fan Connector (4-pin)* (*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.)
CPU Optional/Water Pump Fan Co: 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** (** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.)
Chassis Intrusion Header: 1 x Chassis Intrusion and Speaker Header
Conector do Painel de Audio Frontal: 1 x Front Panel Audio Connector
Slots de expansão:
PCIe x16: 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode* ( *Supports NVMe SSD as boot disks)
PCIe X1: 1 x PCIe 3.0 x1 Slot (PCIE1)
M.2: 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s)
Dados Logísticos :
Dimensões: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
Outras Informações:
Garantia: 1 Ano + 2º/3ºAno DL84/2021 (Consumidor Final)
Certificações: FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)
Acessórios: Quick Installation Guide, Support CD, I/O Shield; 2 x SATA Data Cables; 1 x Screw for M.2 Socket
Marca: ASRock
Modelo: H610M-HVS / M.2 R.2
Part Number: 90-MXBJJ0-A0UAYZ
EAN: 4710483939914
