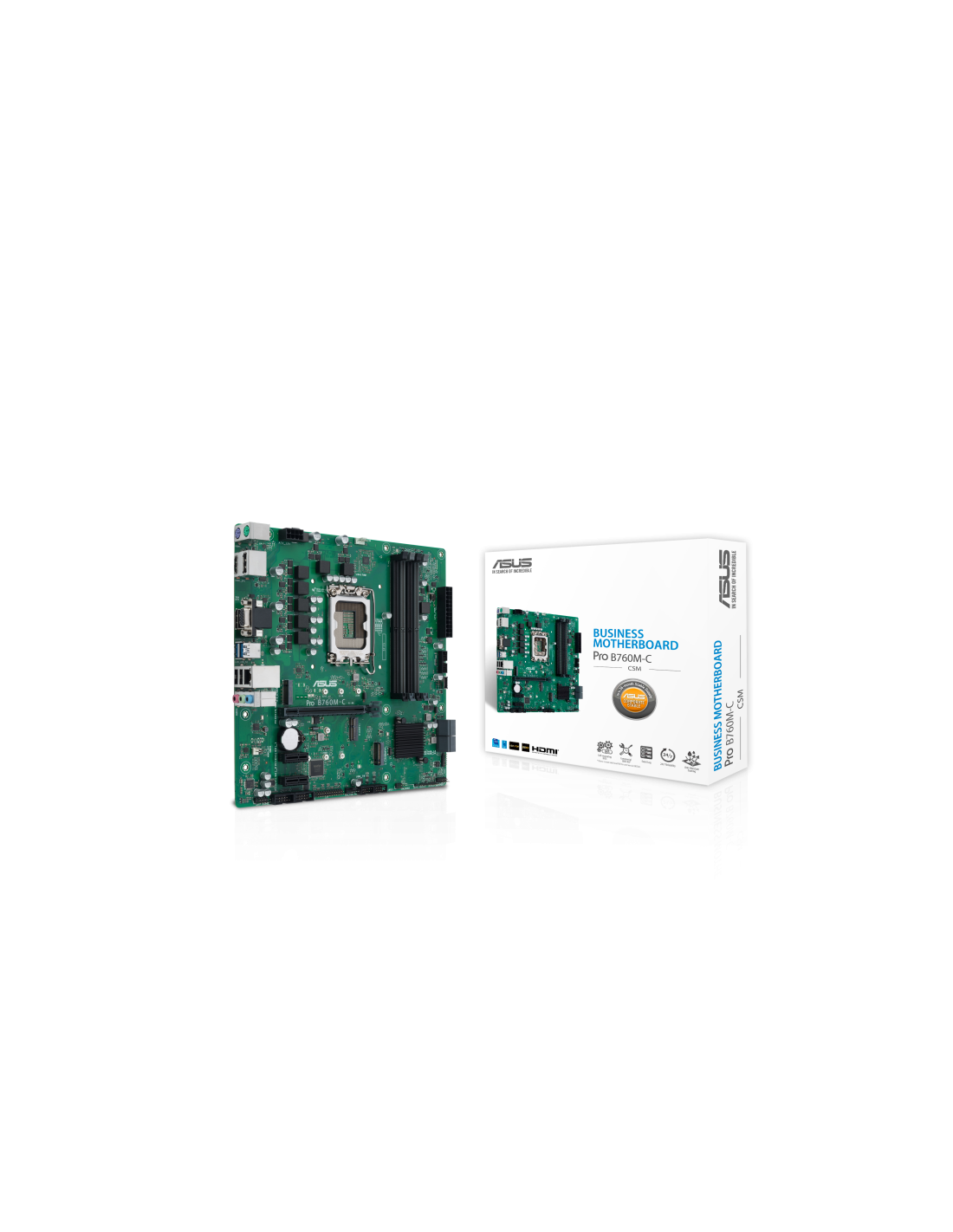

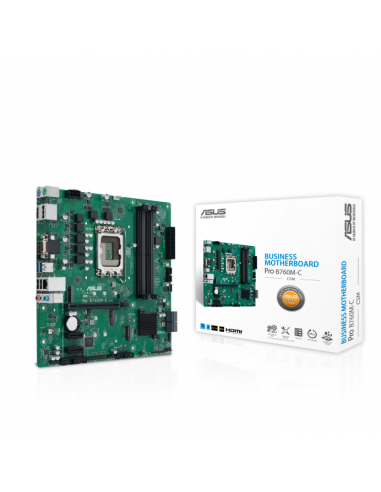

Motherboard Skt1700 Asus Pro B760M-C-CSM

Marca: Asus

Referência 8-90MB1DX0-M0EAYC

Esgotado

234,59 €

Com IVA

Motherboard gama Profissional, Micro-ATX B760 com maior segurança, confiabilidade, capacidade de gerenciamento e manutenção

Model
Pro B760M-C-CSM
CPU
Intel^® Socket LGA1700 for 13^thGen Intel^® Core™ Processors & 12^th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel^®Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel^® B760 Chipset
Memory
4 x DIMM, Max. 128GB, DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel^® Extreme Memory Profile (XMP)
Optimem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
2 x DisplayPort**
1 x VGA port
1 x HDMI^® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI^® 2.1.
Expansion Slots
Intel^® 13^th & 12^th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel^® B760 Chipset
2 x PCIe 3.0 x1 slots
Note:To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® 13^th & 12^th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel^® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Intel^® 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C^®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
2 x DisplayPorts
1 x HDMI^® port
1 x VGA port
1 x Intel^® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x Mono-out header (with Amp IC)
1 x M.2 slot (Key E)
1 x SMBUS header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design & Business Focused Features
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit*
- Anti-Moisture Coating
- 24/7 Reliability
- Overcurrent Protection
* Please contact with local FAE for commercial BIOS kit.
Software Features
ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express (ACCE)
BIOS
128Mb Flash ROM
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw package for M.2 SSD
1 x Screw package for M.2 Key E
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Operating System
Windows^® 11, Windows^® 10 64-bit
Form Factor
mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Referências:
Carateristicas Gerais:
Formato da Motherboard: Micro ATX
Socket / Processador: Skt1700
Chipset: B660
Marca Chipset: Intel®
Processadores Compatíveis: Supports 13th Gen
Memória:
BIOS: 128Mb AMI UEFI Legal BIOS
Tipos de memórias suportadas: DDR5
Número de slots de memória: 4
Tipo de slots de memória: 4 x DIMM, DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory
Memória máxima: 128gb
Audio, Video e Rede:
Rede: Gigabit LAN 10/100/1000 Mb/s
Portas E/S:
USB 2.0: 2 x USB 2.0 ports (2 x Type-A)
USB 3.2 (Ger. 1): 2 x USB 3.2 Gen 1 ports (2 x Type-A)
VGA: 1x
HDMI: 1x
Mini DP / Display port: 0x / 2x
Conectores internos:
USB 2.0 Header: 2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB 3.1 Header: 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
Outras Informações:
Garantia: 1 Ano + 2º/3ºAno DL84/2021 (Consumidor Final)
Marca: ASUS
Modelo: PRO B760M-C-CSM
Part Number: 90MB1DX0-M0EAYC
EAN: 4711387014691
Código de Produto: 902216
