Placa Rede Wireless PCIe TP-Link Archer T4E AC1200 Dual Band
Tp-Link
38-ARCHERT4E
Disponível
32,87 €
Com IVA

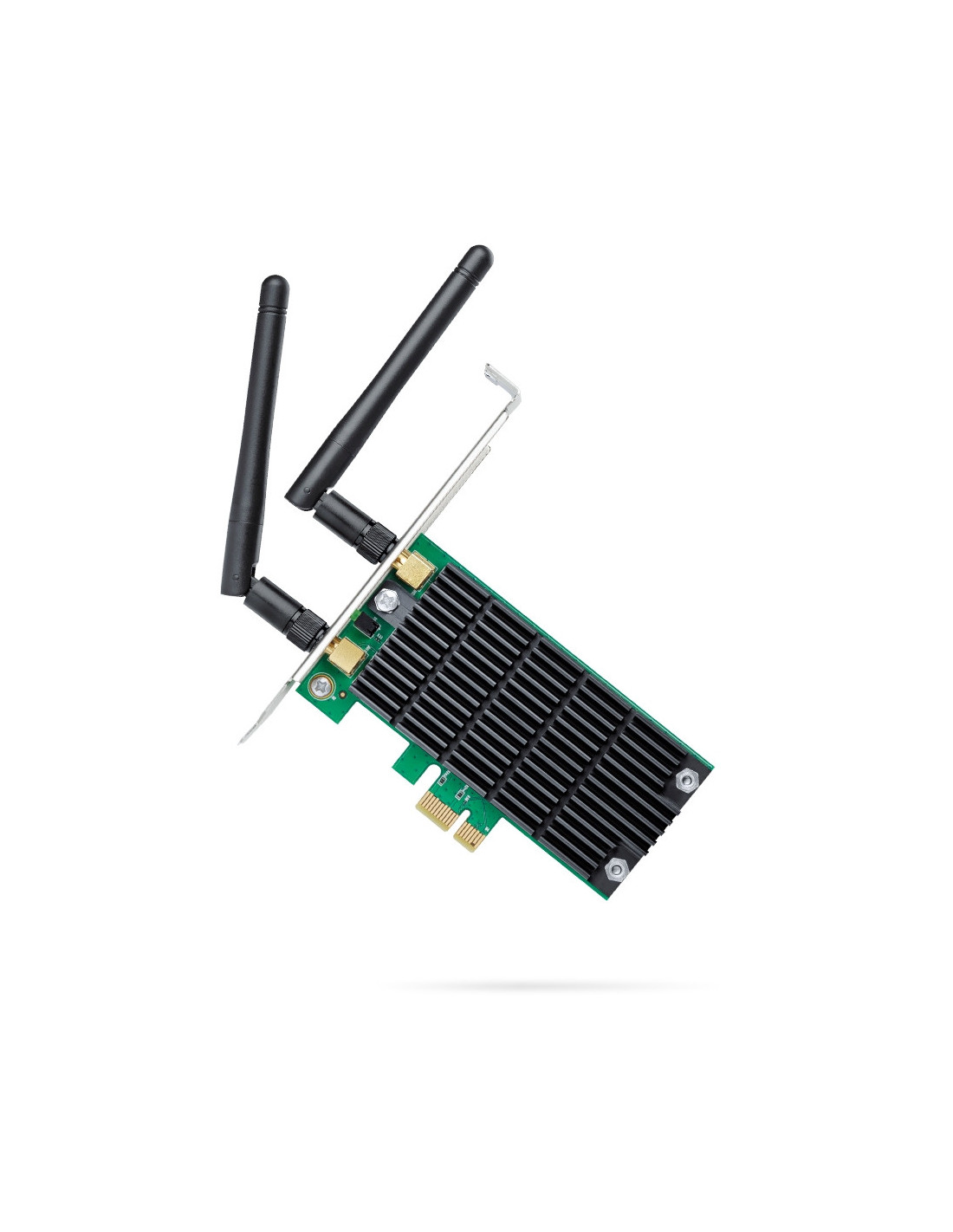

AC1200 Wireless Dual Band PCI Express Adapter Archer T4E
Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
High-Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)
802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage
Beamforming – Wi-Fi signals are strengthened towards a certain direction where client exists
Multiple-Size Brackets – Low profile and full height brackets are both provided, suitable for all PCs
2×2 MIMO – Users can easily access a high-speed wireless connection
Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability
Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
High-Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)
802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage
Beamforming – Wi-Fi signals are strengthened towards a certain direction where client exists
Multiple-Size Brackets – Low profile and full height brackets are both provided, suitable for all PCs
2×2 MIMO – Users can easily access a high-speed wireless connection
Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability
Interface
PCI Express
Dimensions ( W x D x H )
4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)
Antenna Type
2 Dual Band Detachable Antennas
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz
Signal Rate
5 GHz
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Reception Sensitivity
5 GHz :
11ac HT80: -59.5 dBm
11ac HT40: -63 dBm
11ac HT20: -68 dBm
11n HT40: -70 dBm
11n HT20: -73 dBm
11a 54Mbps: -76 dBm
11a 6Mbps: -92 dBm
2.4GHz :
11n HT40: -67.5 dBm
11n HT20: -70 dBm
11g 54Mbps: -72 dBm
11b 11Mbps: -86.5 dBm
Transmit Power
5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)
Wireless Modes
Infrastructure mode
Wireless Security
Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification
CE, FCC, RoHS

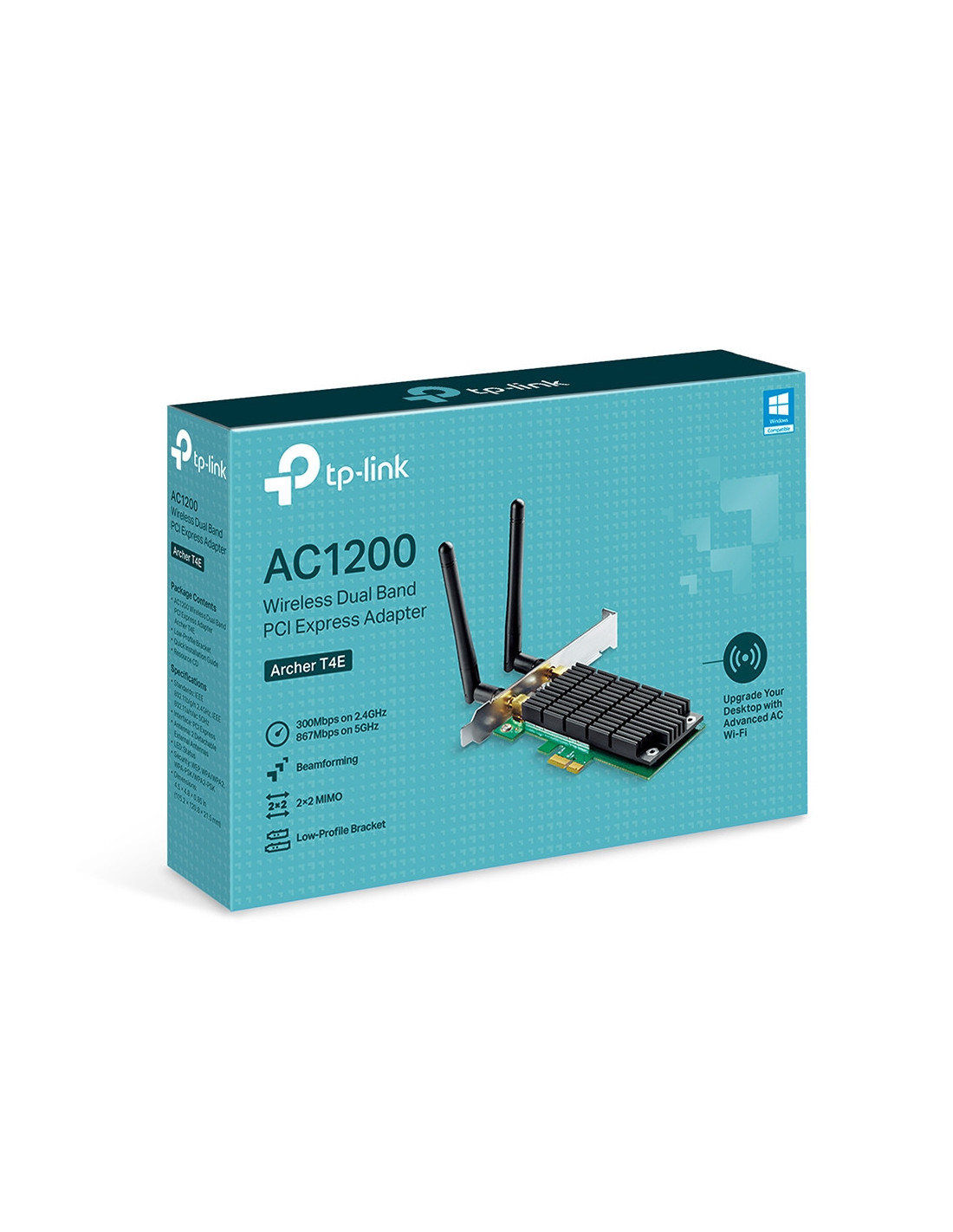

Package Contents
AC1200 Wireless Dual Band PCI Express Adapter Archer T4E
Low-Profile Bracket
Quick Installation Guide
Resource CD
System Requirements
Windows 10/8.1/8/7/XP (32/64bit)
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
PCI Express
Dimensions ( W x D x H )
4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)
Antenna Type
2 Dual Band Detachable Antennas
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz
Signal Rate
5 GHz
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Reception Sensitivity
5 GHz :
11ac HT80: -59.5 dBm
11ac HT40: -63 dBm
11ac HT20: -68 dBm
11n HT40: -70 dBm
11n HT20: -73 dBm
11a 54Mbps: -76 dBm
11a 6Mbps: -92 dBm
2.4GHz :
11n HT40: -67.5 dBm
11n HT20: -70 dBm
11g 54Mbps: -72 dBm
11b 11Mbps: -86.5 dBm
Transmit Power
5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)
Wireless Modes
Infrastructure mode
Wireless Security
Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification
CE, FCC, RoHS
Package Contents
AC1200 Wireless Dual Band PCI Express Adapter Archer T4E
Low-Profile Bracket
Quick Installation Guide
Resource CD
System Requirements
Windows 10/8.1/8/7/XP (32/64bit)
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
- Conectividade:
- Interface
- PCI-E x1
- Frequência
- 5 GHz 11ac: Até 867 Mbps (dinâmico) / 2.4 GHz: Até 300 Mbps (dinâmico)
- Interno/Externo
- Interno
- Normas e Protocolos de Comunicação
- IEEE 802.11ac/n/a 5 GHz / IEEE 802.11n/g/b 2.4 GHz
- Potência de transmissão
- 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP) / 2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)
- Tecnologia de Modulação
- DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
- Antena:
- Qtd. de Antenas
- 2
- Codificação / Segurança
- 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
- Certificações :
- Certificações
- CE, FCC, C-Tick, IC
- Outras Informações:
- Garantia
- 2 Anos
- Identificação do Produto:
- Marca
- TP-Link
- Modelo
- Archer T4E AC1200
- Part Number
- ARCHERT 4E
- EAN
- 6935364089931
- Código de Produto
- 789026
