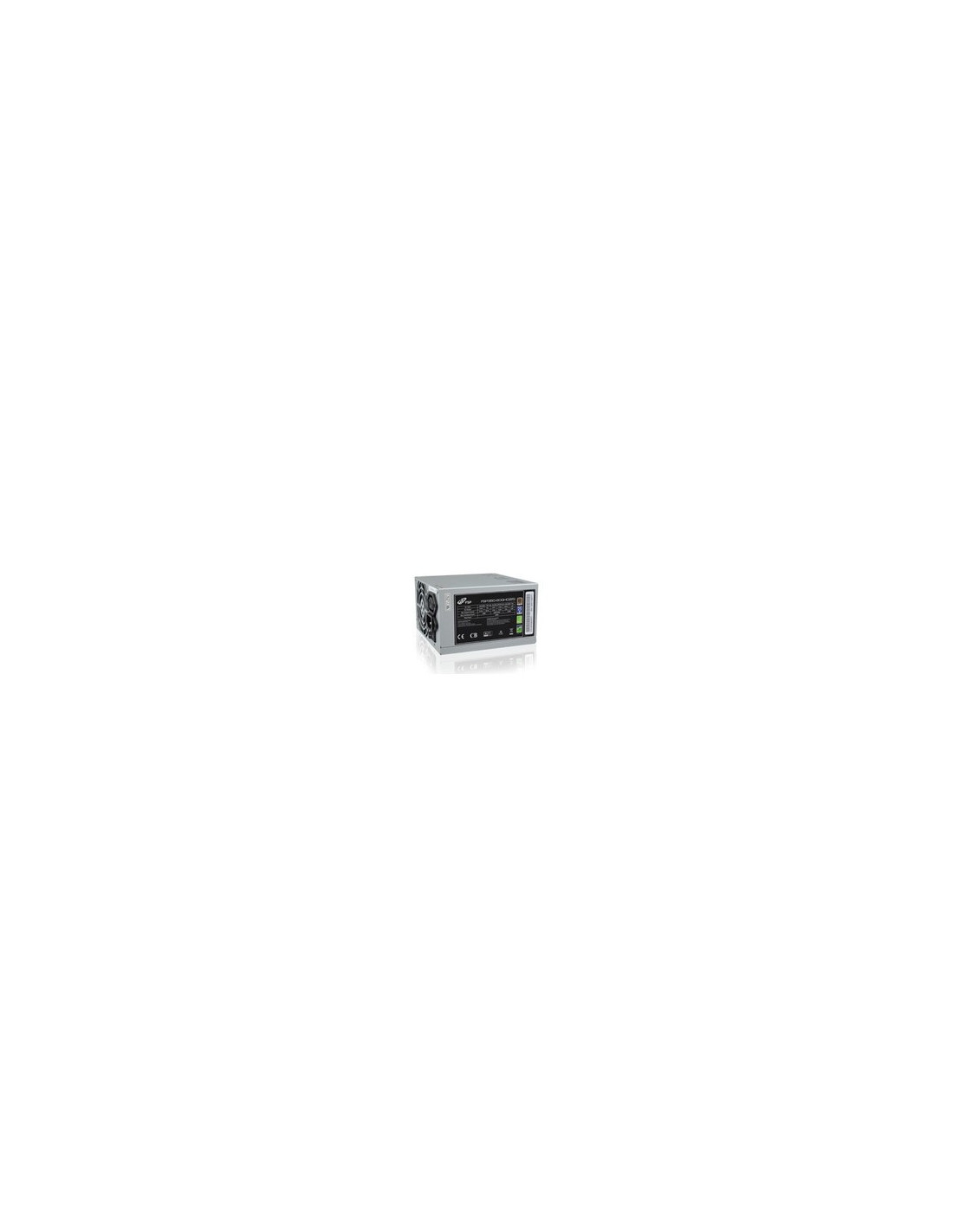

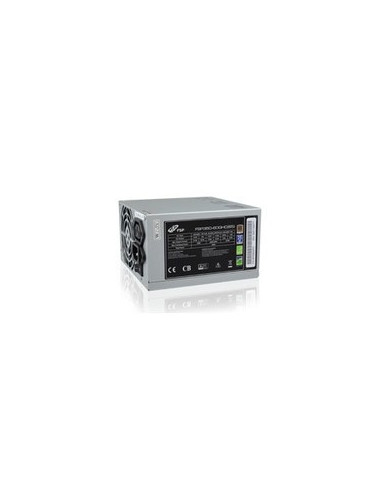

Fonte Alim ATX 350W 80+ Bronze

Model Name          FSP350-60GHN



Wattage                350W



Dimension             140mm (L) × 150 mm (W) × 86mm (H)



Efficiency Level

80PLUS Bronze



Erp Lot

<0.5w


Input Voltage

100~240Vac



Effciency

80PLUS Bronze



PWOK Delay Time

500ms > PWOK > 100ms



EMC performance

EN55022 class B
EN55024
EN 61000-3-2
EN 61000-3-3




Input Frequency

47 ~ 63 Hz



Input Current

115V@ < 4.0 amps - rms
230V@ < 2.0 amps - rms


Output Rise Time

+3.3Vdc : 20ms Maximum
+5Vdc : 20ms Maximum
+12Vdc : 20ms Maximum
+5Vsb : 20ms Maximum
-12Vdc : 20ms Maximum



Temperature Range

Operating : 10 to +50℃
Storage :-20 to +80℃



Humidity

Operating : 5-95% to % RH, Non-condensing
Storage : 5-95% to % RH, Non-condensing



MTBF

The power supply reliability, when calculated by MIL-HDBK-217;latest revision, are exceed 100,000 hours with all output at typical load and an ambient temperature of 25℃.



Safety                   CE,FCC,TUV,UL/cUL



Output Voltage and Current Rating
+3.3V+5V+12V1+12V2-12V+5VsbRipple-Noise(R-P) mVRegulation Load %Output Max.(A)Output Min.(A)







50mV

50mV

120mV

120mV

120mV

50mV



±5%

±5%

±5%

±5%

±10%

±5%



21A

20A

15A

15A

0.5A

2.5A



0.1A

0.2A

0.1A

0.5A

0A

0A



Notes ( 1 ) +3.3V & +5V total output not exceed 105W.
( 2 ) Maximum combined current for the +12V outputs shall be 28A . ( 3 ) +12V2 peak current is 18A (less then 10m Sec.) , minimum voltage during peak is >11.0Vdc.
( 4 ) +5Vsb peak current is 3.5A(less then 500m Sec.) , minimum voltage during peak is > 4.5Vdc.
