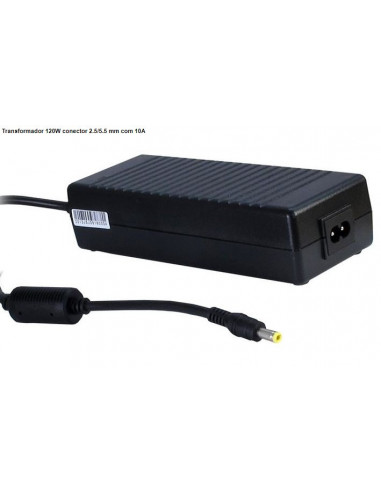

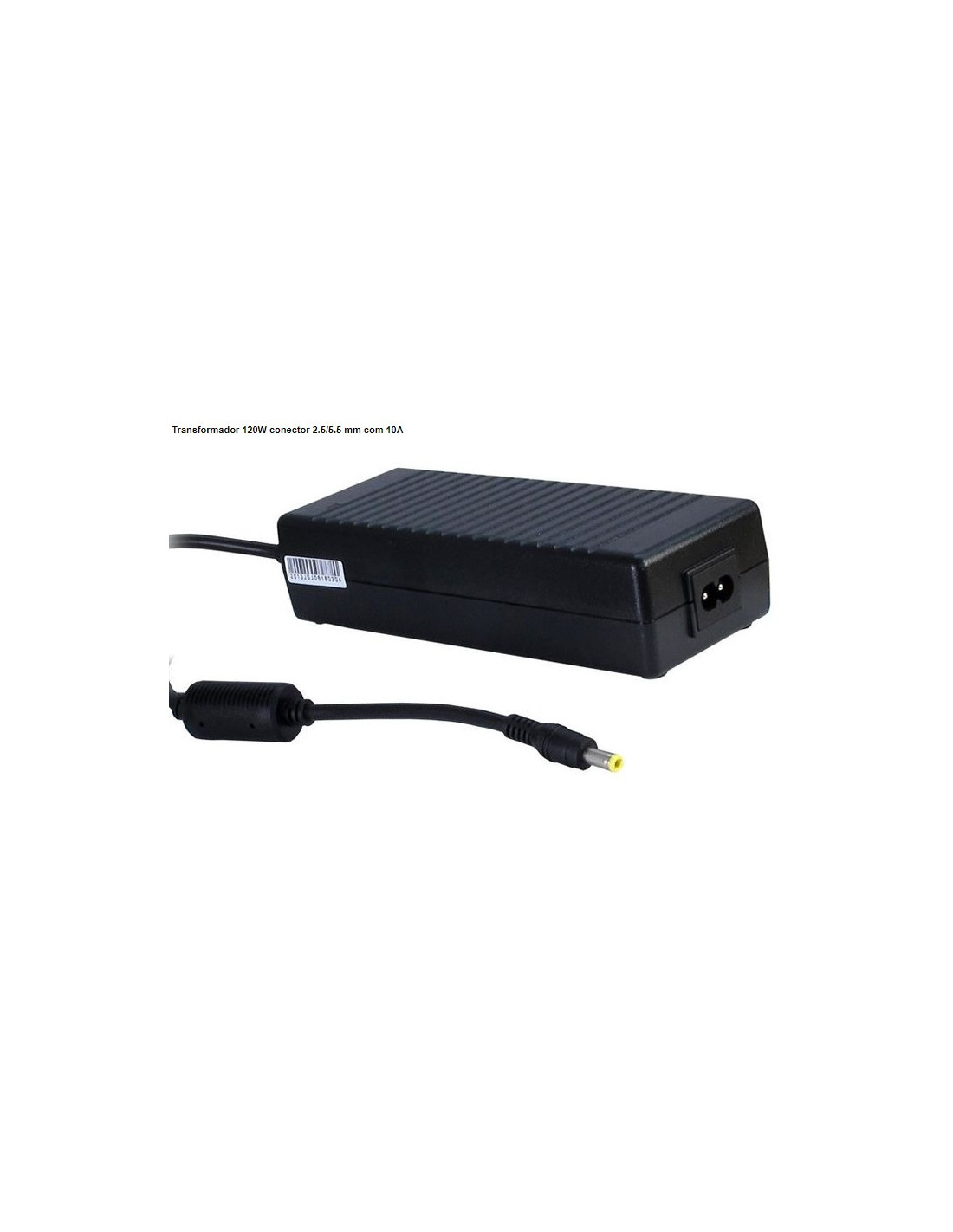

Fonte Alim AC/DC 120W 12V/10A ( 5.5 x 2.5mm )

EAN

6943051260167








Package Weight

653g



Release Date

01 / 08 / 2013



Unit Weight

384g



Unit Dimension (cm)

15.6 x 6.4 x 3.8



Category

Ultrabook / Notebook / Laptop



Application



iPod,GPS systerms,PDA,GSM,MP3/MP4 player etc.
Laptop, ASUS / Samsung / Dell / Lenovo / GateWay/Toshiba /MSI / Acer / Fujitsu etc.




Cable Type

Eu AC power cable



Certification

CE,ROHS,TUV



Connectors

Tip A - 6.0mm*4.4mm Black
Tip B - 6.3mm*3.0mm Green
Tip C - 5.5mm*2.5mm White
Tip D - 5.5mm*2.1mm Blue
Tip E- 5.5mm *1.7mm Yellow
Tip F- 4.8mm* 1.7mm Yellow
Tip G - 4.0mm* 1.7mm Yellow
Tip H - 5.0mm x 3.4mm Yellow



Features



Provides power supply to a wide range of notebooks Overload, short circuit and overheat protection
AC Input: AC100--240V 1.8A
DC Input: 11-15V 10A Max.
Output voltage: 15V/16V/18V/19V/20V DC at 6 A max or 22V/24V DC at 5 A max Power:120W MAX
USB Output: 5V/1A
With 8 pcs interchangeable tips can use for mostly netbook/Laptop models and PDA/MP3/MP4/iPod/




Hold Up Time

8 ms(min)



Input

1.8A Max



Life Expectancy (HRS)

100,000 Hours



Nominal Power

120



Operating Temperature (°C)

0~40



Output

15V/16V/18V/19V/20V DC at 6A max or 22V/24V DC at 5 A max



Packaging Includes



EU AC Cable
8 pcs interchangeable tips
Car DC input cord
User Manual
Warranty registration card




Packaging Type

Color Box



P.G. Signal

100~500ms



Rated Current (A)

15V/16V/18V/19V/20V DC at 6A max or 22V/24V DC at 5 A max



Storage Temperature (°C)

-20~70



Warranty

2 Years
