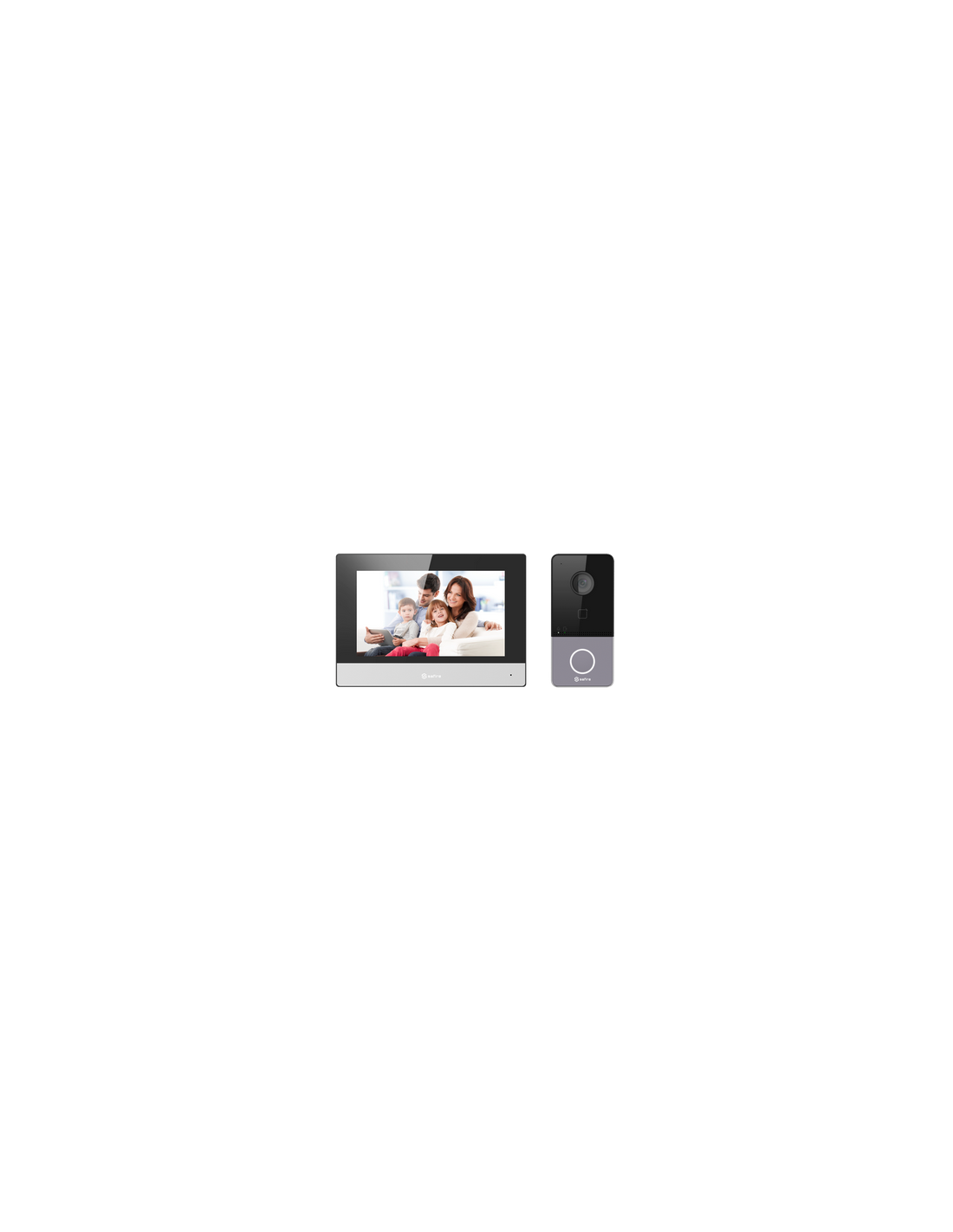

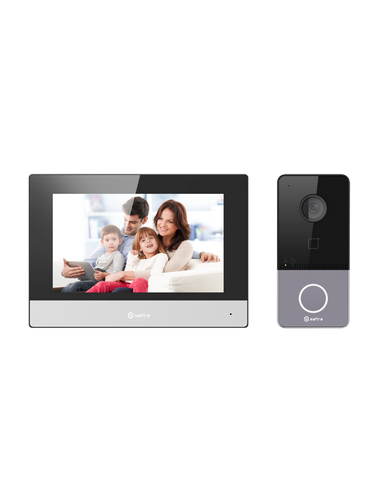

Video intercom kits: TFT touch screen with a clear and sharp image. Aesthetic and quality design. Equipped for all types of installations, whether IP or 2-wire. With precise functions such as bidirectional communication, remote viewing from the application via P2P cloud, as well as remote opening of the installation. There is a possibility of recording on a MicroSD card. 2MP camera with perfect visualization of the entire environment thanks to its 180º aperture. Quick and intuitive installation thanks to its plug & play mode.
| Operation system | Embedded Linux operation system |
| Flash | 32 MB |
| RAM | 128 MB |
| Camera | 2MP HD camera |
| Night vision | Low illumination IR supplement mode:3 m |
| Backlight compensation | Support |
| Digital noise reduction | Support |
| WDR | True WDR |
| Field of view | Horizontal: 129° Vertical: 75° |
| Video Compression Standard | H.264 |
| Stream | Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps |
| Motion detection | Support |
| Flash-avoid frequency | 50 Hz, 60 Hz |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
| Audio intercom | Two-way audio communication |
| Network protocol | TCP/IP, RSTP, WiFi |
| Wired network | 10/100 Mbps Ethernet |
| RS-485 | 1 |
| Alarm input | 4 |
| Debugging port | 1 |
| Grounding | 1 |
| TAMPER switch | 1 |
| Power consumption | ＜ 10 W |
| Working temperature | e -40° C to 53° C(-40° F to 127.4° F) |
| Working humidity | 10% to 95% |
| Dimension | 138 mm × 65 mm × 27 mm |
| Installation | Surface mounting |
| Protection level | IP65 |
| Indicator | 2 |
| Power supply | IEEE802.3af, standard PoE 12 VDC |
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
| Display screen | 7-inch colorful TFT screen |
| Display resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
| Wired network | 10/100 Mbps self-adaptive |
| Wireless network | Wi-Fi 802.11 b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
| RS-485 | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| Alarm input | 8-ch alarm inputs |
| Relay output | 2 |
| TF card | Max to 32 G, SD 2.0 or lower version |
| Power consumption | ≤ 6 W |
| Working temperature | ‘-10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") |
| Platform | Safire Connect & Safire Control Center |
- Referências:
- Marca
- Safire
- Modelo
- SF-VIK002-S-WIP
- Part Number
- SF-VIK002-S-WIP
- Código de Produto
- 730015
- Image Sensor
- 1/3" 2 Megapixel CMOS with IR Cut Filter
- Horizontal Resolution
- N/D
- Minimum Illumination
- While Infrared LED on "0" lux
- Microphone
- Sim
- Audio Pick-up Range
- No
- Night Vision:
- Illumination
- Infrared LED
- Garantia:
- Garantia de fabricante
- 1 Ano + 2º/3ºAno DL84/2021 (Consumidor Final)
- Video:
- Audio:
