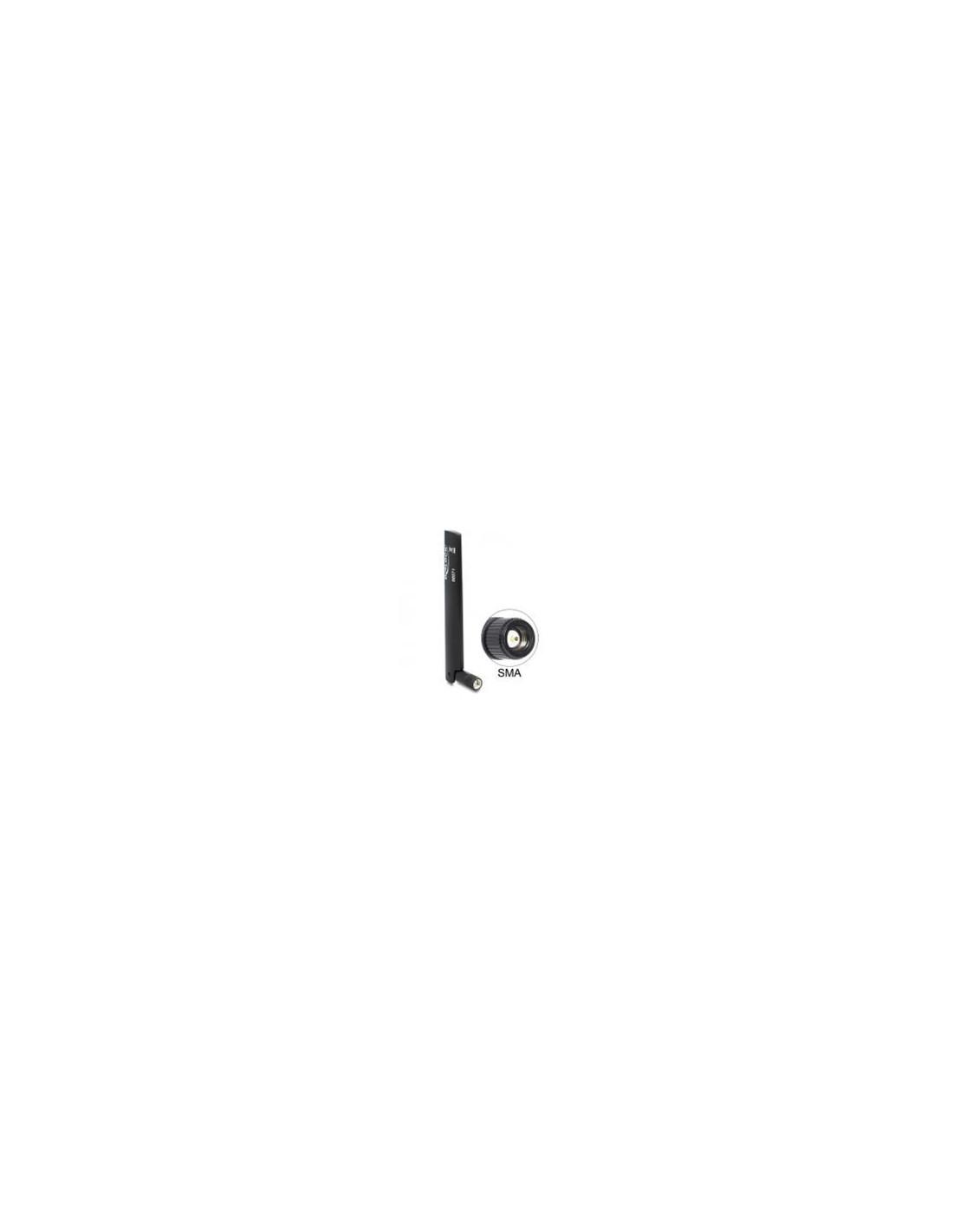

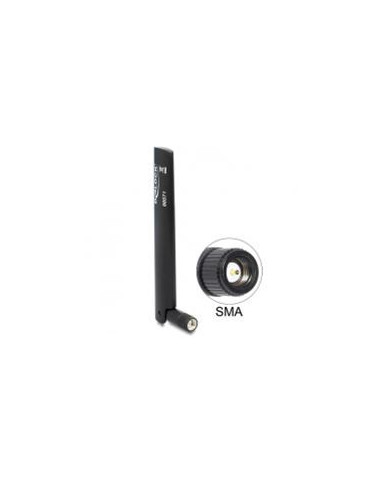

Antena LTE SMA - 0.8 ~ 5.0 dBi Omnidirecional c/Junção, GSM, UMTS, WLAN 2,40 GHz, Bluetooth, Polarization: linear, vertical.
• LTE Band 1/2/3/7/8/13/17/20
• 1920 ~ 2170
MHz(1), peak gain 1,7 ~ 2,3 dBi
• 1710 ~ 1880 MHz
(3), peak gain 1,8 ~ 3,0 dBi
• 2500 ~ 2690 MHz
(7), peak gain 2,0 ~ 2,7 dBi
• 880
~ 960 MHz (8), peak gain
0,6 ~ 0,5 dBi
• 746
~ 787 MHz (13), peak gain 0,3 ~ 0,9
dBi
• 704
~ 746 MHz (17), peak gain 0,3 ~ 0,7
dBi
• 791
~ 862 MHz (20), peak gain - 0,8 ~ 0,2 dBi
• GSM
• UMTS
• WLAN 2,40 GHz
• Bluetooth
• SMAplug screw interface
• With flexible joint
• Polarization: linear, vertical
• Impedance: 50 Ohm
• Operating temperature: -10 °C
~ 55 °C
• ABS UV resistant
• Dimension: with flexible
joint 135.00 mm
without flexible joint 107.00 mm
•
Ø:
19.00 mm (top)
10.20 mm (base SMA)
• 1920 ~ 2170
MHz(1), peak gain 1,7 ~ 2,3 dBi
• 1710 ~ 1880 MHz
(3), peak gain 1,8 ~ 3,0 dBi
• 2500 ~ 2690 MHz
(7), peak gain 2,0 ~ 2,7 dBi
• 880
~ 960 MHz (8), peak gain
0,6 ~ 0,5 dBi
• 746
~ 787 MHz (13), peak gain 0,3 ~ 0,9
dBi
• 704
~ 746 MHz (17), peak gain 0,3 ~ 0,7
dBi
• 791
~ 862 MHz (20), peak gain - 0,8 ~ 0,2 dBi
• GSM
• UMTS
• WLAN 2,40 GHz
• Bluetooth
• SMAplug screw interface
• With flexible joint
• Polarization: linear, vertical
• Impedance: 50 Ohm
• Operating temperature: -10 °C
~ 55 °C
• ABS UV resistant
• Dimension: with flexible
joint 135.00 mm
without flexible joint 107.00 mm
•
Ø:
19.00 mm (top)
10.20 mm (base SMA)
- Identificação do Produto:
- Marca
- OEM
- Part Number
- LTEMA
- Código de Produto
- 792234
- Características Técnicas:
- Qtd. de Antenas
- 1
- Tipo de antena
- Omnidirecional c/Junção
- Ganho dBi
- 5 dBi
- Condições ambientais:
- Temperatura em funcionamento
- -10 °C ~ 55 °C
